KI-1000 Delineator

$595.00

The KI-1000 is a water-fillable interlocking delineator designed for pedestrian separation, guidance and low-speed worksite layouts. The product complies with AS 1742.3-1996, Section 3.10.1(C), for traffic control devices used for works on roads. Its interlocking system keeps adjoining units connected through angles of up to 120 degrees each way, allowing routes and boundaries to follow corners and changing layouts.

Defined Pedestrian Routes & Worksite Boundaries
Suited to temporary walkways, footpaths and detours, roadwork, construction and civil sites, car parks and other low-speed areas where pedestrian routes and worksite boundaries need to be clearly defined and visible.

Larger Water-Fillable KI Format
The KI-1000 is the larger, heavier option in the KI Series, with greater water-fill capacity and provision for mesh fencing, hazard lights and pole signage to support more structured pedestrian-management layouts.

Description

Fill capacity

355L

Effective length

2,000mm

Height

1,000mm

Empty weight

32kg

Overall length

2,200mm

Width

570mm

Filled weight

387kg

Joining system

Interlocking

Colours

Orange or white

Empty weight

32kg

Effective length

2,000mm

Built for Structured Pedestrian & Worksite Layouts

The KI-1000 is the larger, heavier option in the KI Series, where routes and worksite boundaries need to be clearly defined and visible. Its water-fillable format and interlocking system support connected runs that can follow changes in direction.

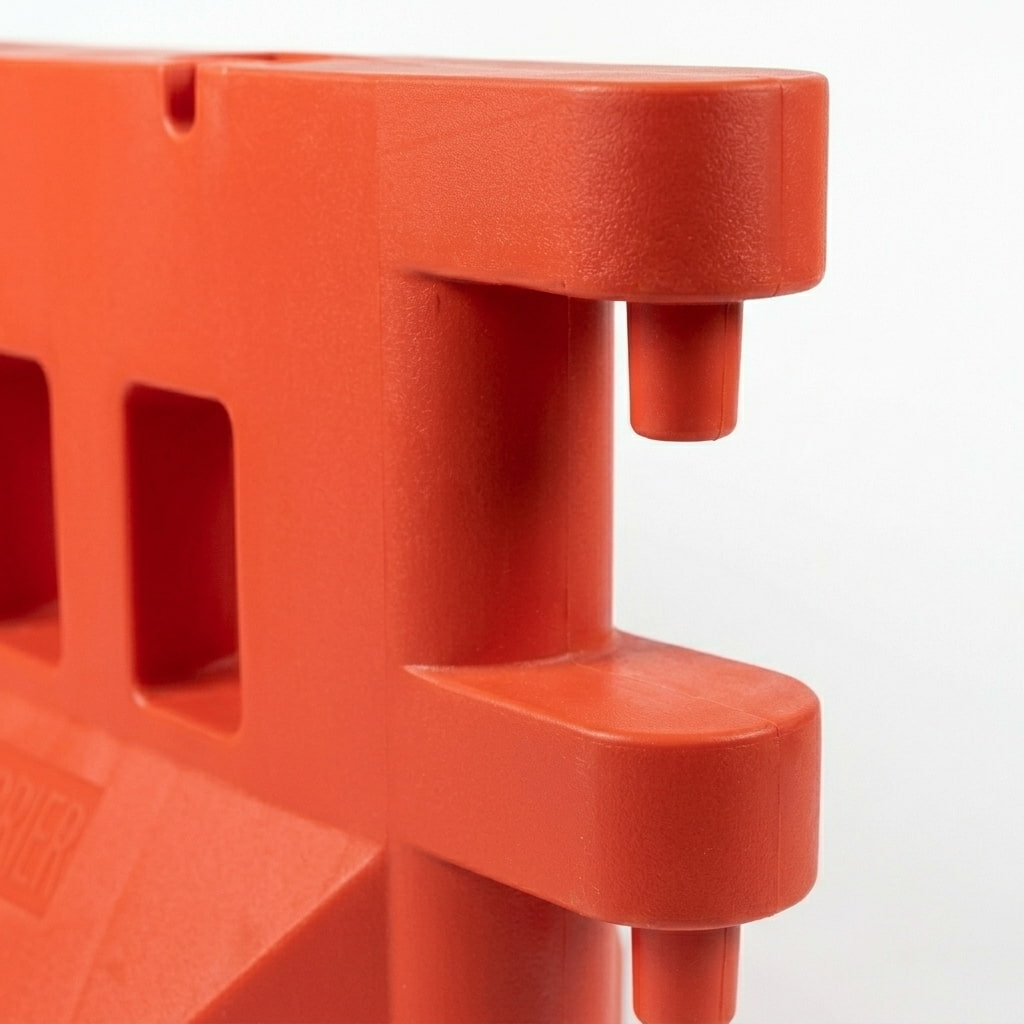

Flexible Interlocking Connection

Units remain connected through angles of up to 120° each way, allowing the run to follow corners and changing layouts.

Position Before Filling

At 32 kg empty, each unit can be positioned and connected before water filling. Once full, the KI-1000 weighs 387 kg.

Reliable Project-Scale Supply

Our Australian Manufacturing For Your Project Requirements

Our Australian rotational-moulding capability allows larger supply requirements to be planned beyond stock already on hand. Quantities, production timing and freight can be considered together, giving your team clearer supply information to plan around.

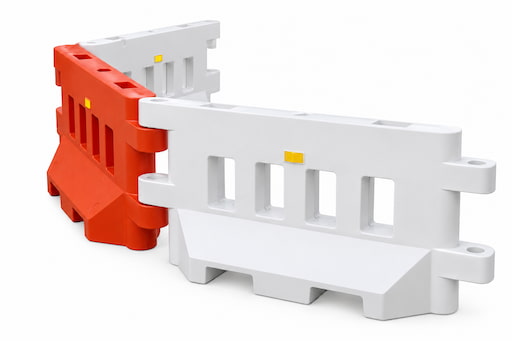

Choose Orange or White

Create a uniform run in orange or white, or use both colours for a contrasting pattern along the boundary.

Retroreflective Visibility

Applied retroreflective tape helps the connected run remain identifiable in reduced-visibility conditions.

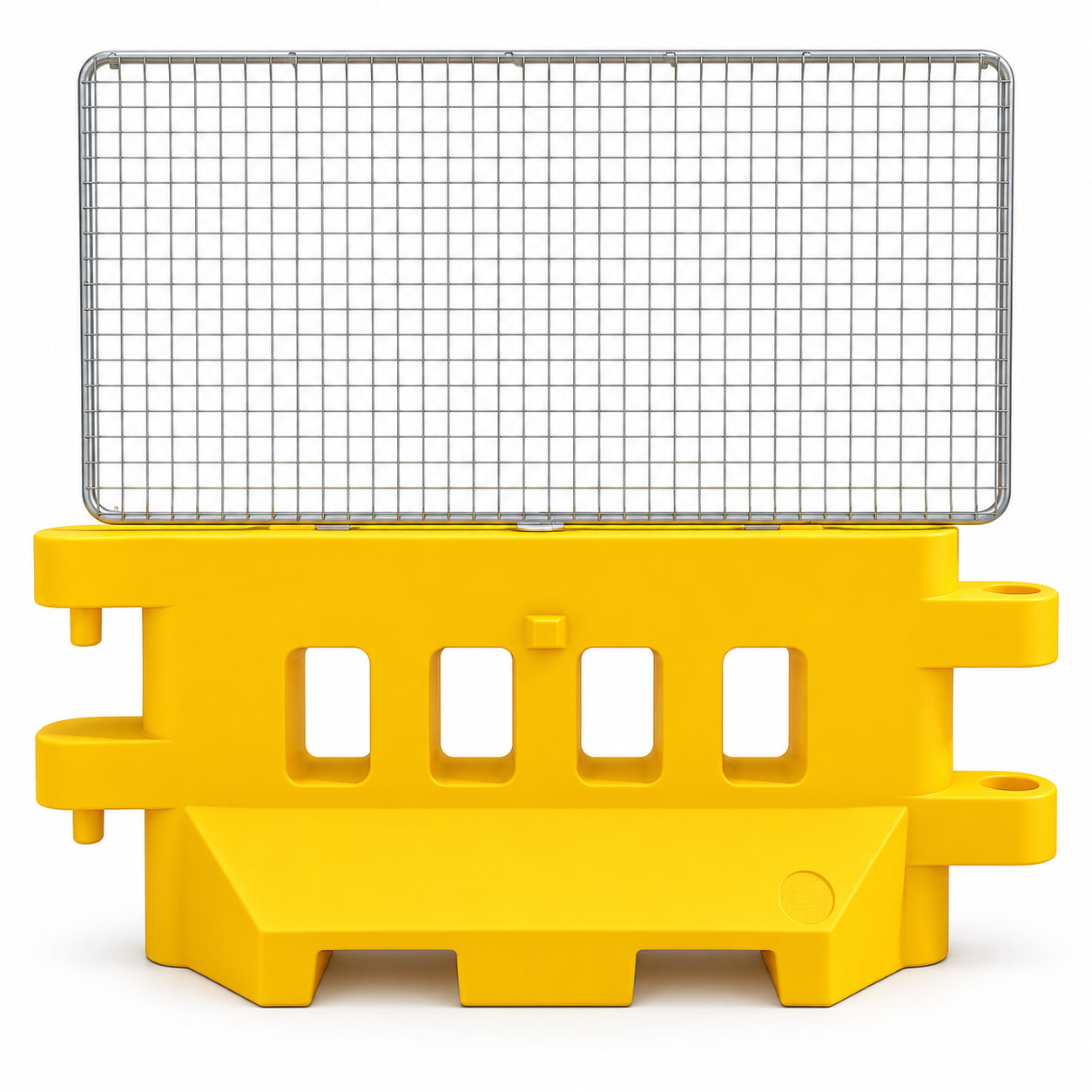

Add Lights, Signage or Mesh

Use the two top apertures for compatible hazard lights, pole signage or mesh fencing where required.

Australian-Made

Designed and manufactured in Australia by Barrier Systems for use across roadworks, civil construction, infrastructure, utilities, mining and industrial sites. Our first-hand product knowledge supports practical guidance on its configuration, intended use and suitability for different worksite requirements.

What applications is the KI-1000 suited for?

The KI-1000 is suited to pedestrian separation and guidance, temporary walkways and footpaths, pedestrian detours, roadworks, construction and civil worksites, car parks and other low-speed areas where pedestrian movement needs to be clearly managed.

It is designed to create a connected pedestrian boundary, not for tested vehicle containment.

When should the KI-1000 be selected instead of the KI-900?

The KI-1000 is the larger and heavier option in the KI Series, with greater water-fill capacity and provision for mesh fencing.

It is particularly well suited to worksite and pedestrian-management layouts where a more substantial connected boundary or extended mesh fencing is required. The KI-900 is the lighter, more compact option where mesh fencing is not needed.

What lighting, signage and mesh-fencing options does the KI-1000 support?

The KI-1000 provides for extended mesh fencing, hazard lights and pole signage through two openings on the top of each unit.

Mesh fencing can be used where a more defined pedestrian or worksite boundary is required, while lighting and signage can provide additional visibility and guidance for the layout.

How does the KI-1000 work as a water-filled pedestrian barrier?

The KI-1000 combines an interlocking modular design with water filling, allowing units to be positioned and connected before being filled on site.

Once filled, each unit weighs 387kg, giving the connected run greater mass for pedestrian and low-speed worksite layouts.

Is it suitable for temporary pedestrian walkways, footpaths and detours?

Yes. The KI-1000 can be used to define temporary pedestrian walkways, footpaths and detour routes where a connected delineator line is required.

Its interlocking design also allows the route to follow changes in direction rather than being restricted to a straight line.

Which roadwork, construction and civil applications suit the KI-1000?

The KI-1000 suits roadwork, construction, utility and civil sites where temporary pedestrian routes, work areas or restricted areas need to be clearly defined and separated.

Its larger format and provision for mesh fencing, hazard lights and pole signage make it particularly useful where a more visible and structured pedestrian-management layout is required.

What makes the KI-1000 suitable for curves, corners and changing layouts?

Its interlocking system keeps adjoining units connected while allowing movement through angles of up to 120 degrees each way.

This allows connected runs to follow corners and changing pedestrian layouts without being limited to a straight line.

Is the KI-1000 designed for vehicle containment or crash protection?

No. The KI-1000 is designed for pedestrian guidance, worksite delineation and clearly defined temporary routes in roadwork, construction and civil environments. Its provision for mesh fencing, hazard lights and pole signage can also improve visibility and help define pedestrian movement around the site.

Pedestrian containment means keeping pedestrian movement within a clearly defined route or area. It is different from vehicle containment, which requires a road safety barrier designed to contain and redirect a vehicle on impact.

Where does the KI-1000 fit in car parks, parking areas and low-speed zones?

The KI-1000 can be used in car parks, parking areas and other low-speed environments where pedestrian separation or a connected delineator boundary is required.

Its interlocking design is particularly useful where the layout needs to follow corners or changes in direction.

Does the KI-1000 comply with the relevant Australian Standard for traffic control devices?

The KI-1000 is referenced against AS 1742.3-1996, Section 3.10.1(C), covering traffic control devices for works on roads.

The standard addresses the use of devices for guiding and managing road users and pedestrians around temporary worksites. The current edition is AS 1742.3:2019, so project-specific requirements should be checked against the latest standard before specification.

Talk to Us About Your Barrier Requirements

Tell us the application, required quantity or total run length, delivery location and required date. We can help confirm suitability and current availability, then plan production timing and freight around your project.





    Additional information
    Weight387 kg
    Dimensions2200 × 570 × 1000 cm
    ColourOrange, White
