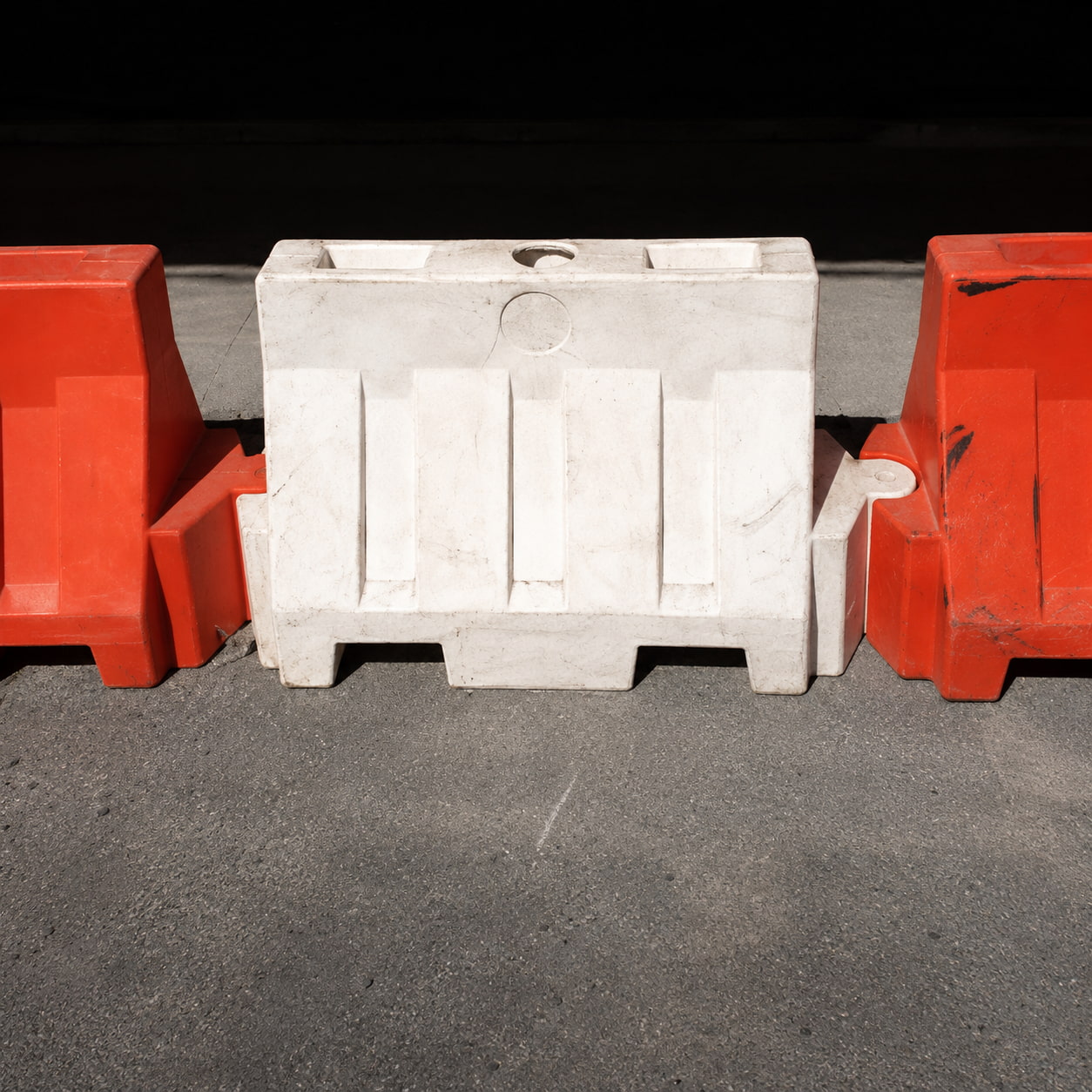

TM-600 Water-Filled Delineator
$165.00
The TM-600 is a compact water-fillable delineator for everyday cleaning, painting, repair and maintenance jobs. Easy to transport when empty, its solid interlocking modules create a clear temporary boundary with substantial weight and stability once filled.
Easy to Transport and Reuse

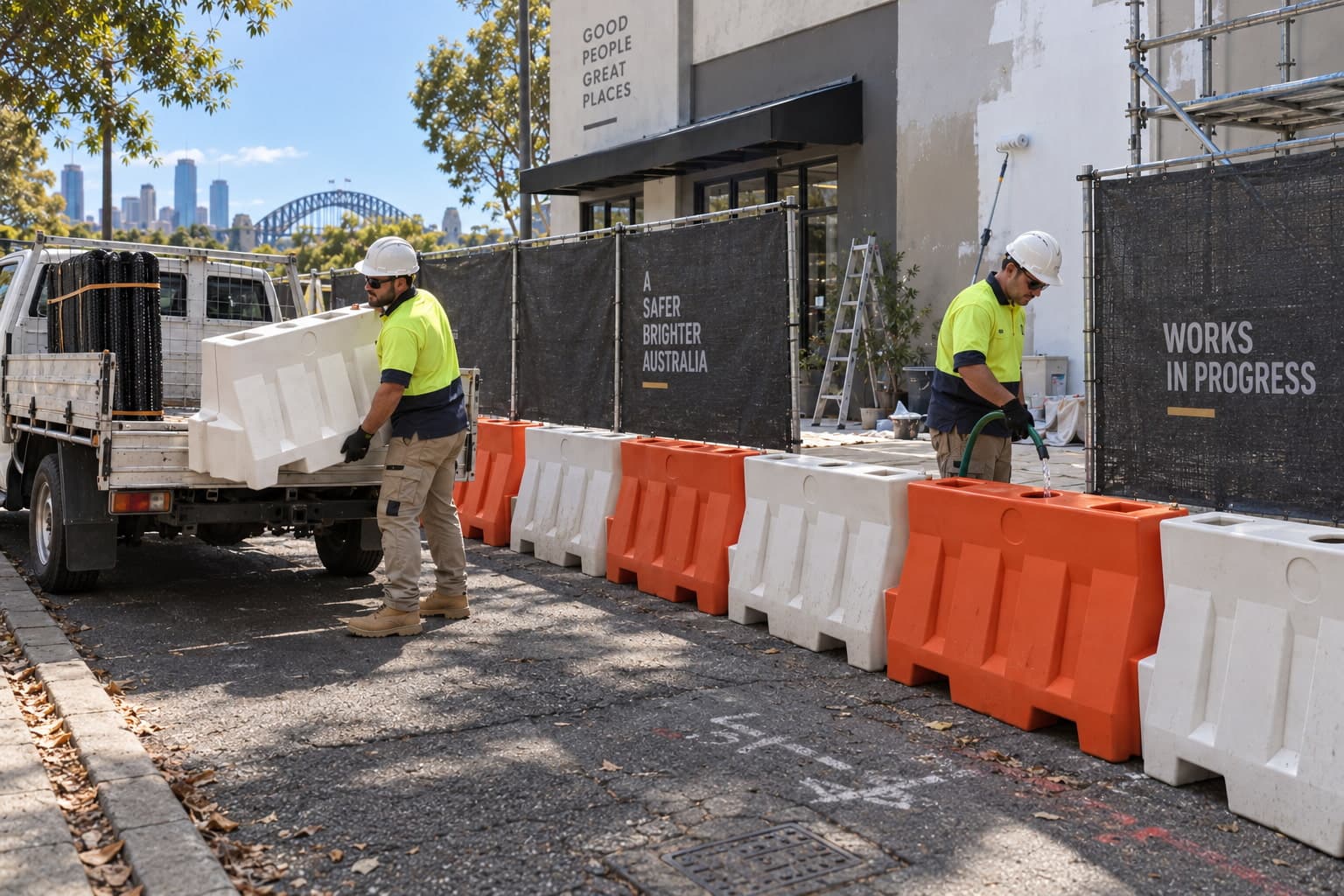

Carry and load empty units by hand, transport them in a ute or trailer, then drain and reuse them at the next job. Practical for temporary work areas, shopping centres and outdoor maintenance.
Flexible Connected Layouts
Interlocking modules form a continuous boundary around work areas and equipment, with up to 35° of rotation between adjoining units to follow bends and changes in direction.
Different Sites. One Practical Solution.
From building maintenance and equipment servicing to car parks and pedestrian access, the TM-600 helps establish clear boundaries that adapt to changing site requirements.
10kg Empty
Flexible 35° Interlocking
150L Water-Filled
Fencing, Signage Ready

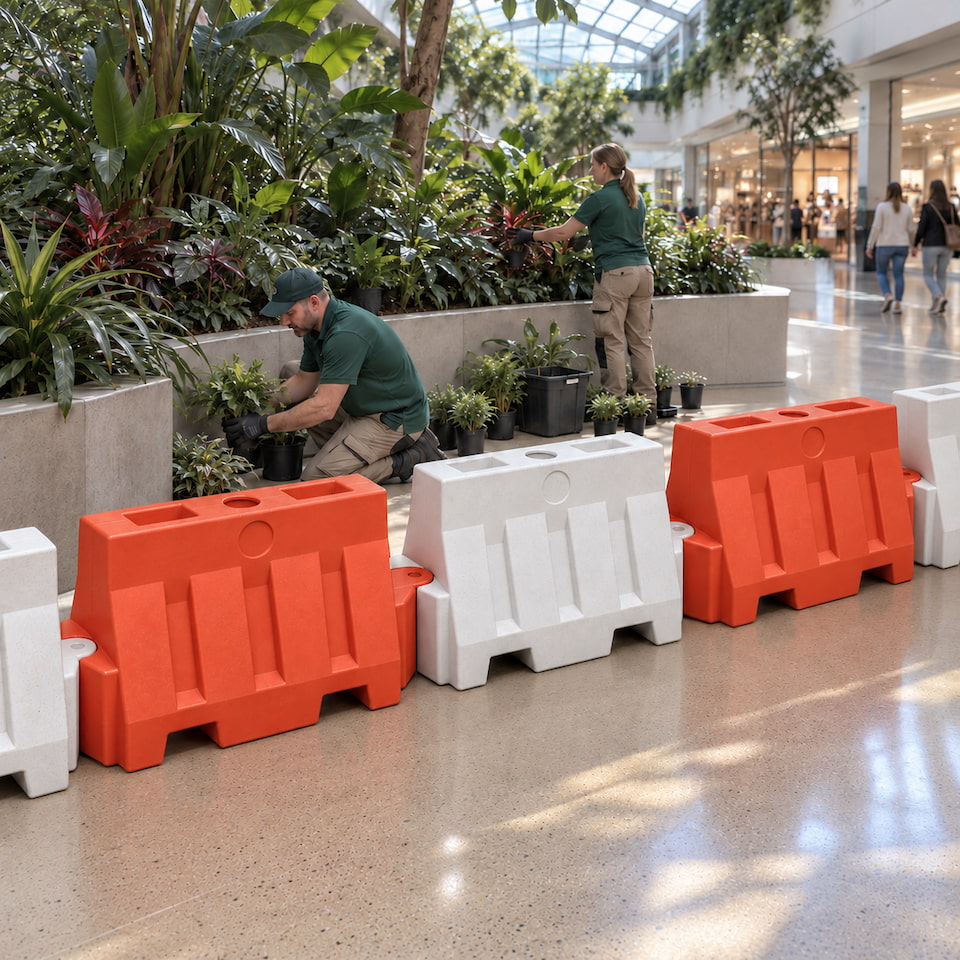

Cleaning and building maintenance areasKeep people and equipment separated during cleaning, maintenance and general site works.

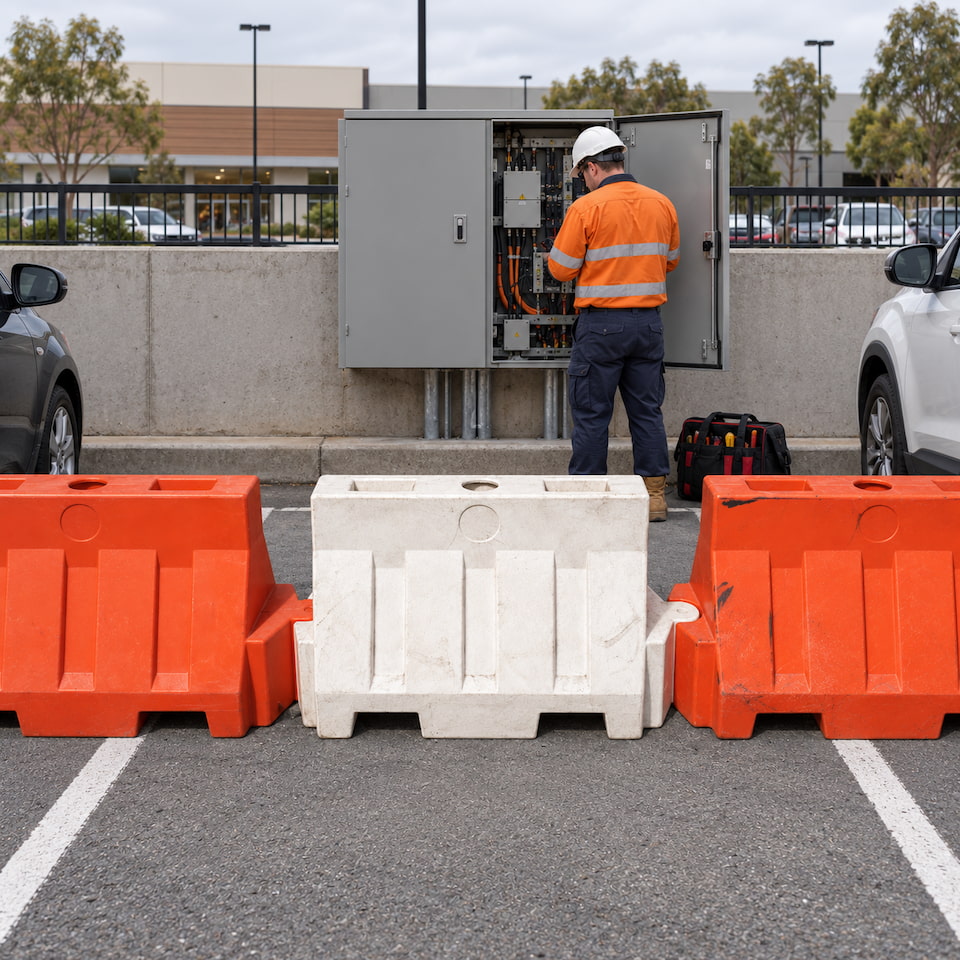

Repairs and equipment service work zonesDefine temporary work areas around equipment, vehicles and trades.
Car parks and temporary access boundariesCreate clear visual separation for vehicle and pedestrian movement.
Made locally. Pick up in Stapylton.
Prefer to collect your order? Use the contact form below to confirm availability and arrange a convenient pickup time.
Light to Handle. Water-Filled for Stability.
The TM-600 combines lightweight handling with the added stability of water-filled mass, offering a practical, cost-conscious solution for temporary work zones, pedestrian guidance and adaptable site layouts.

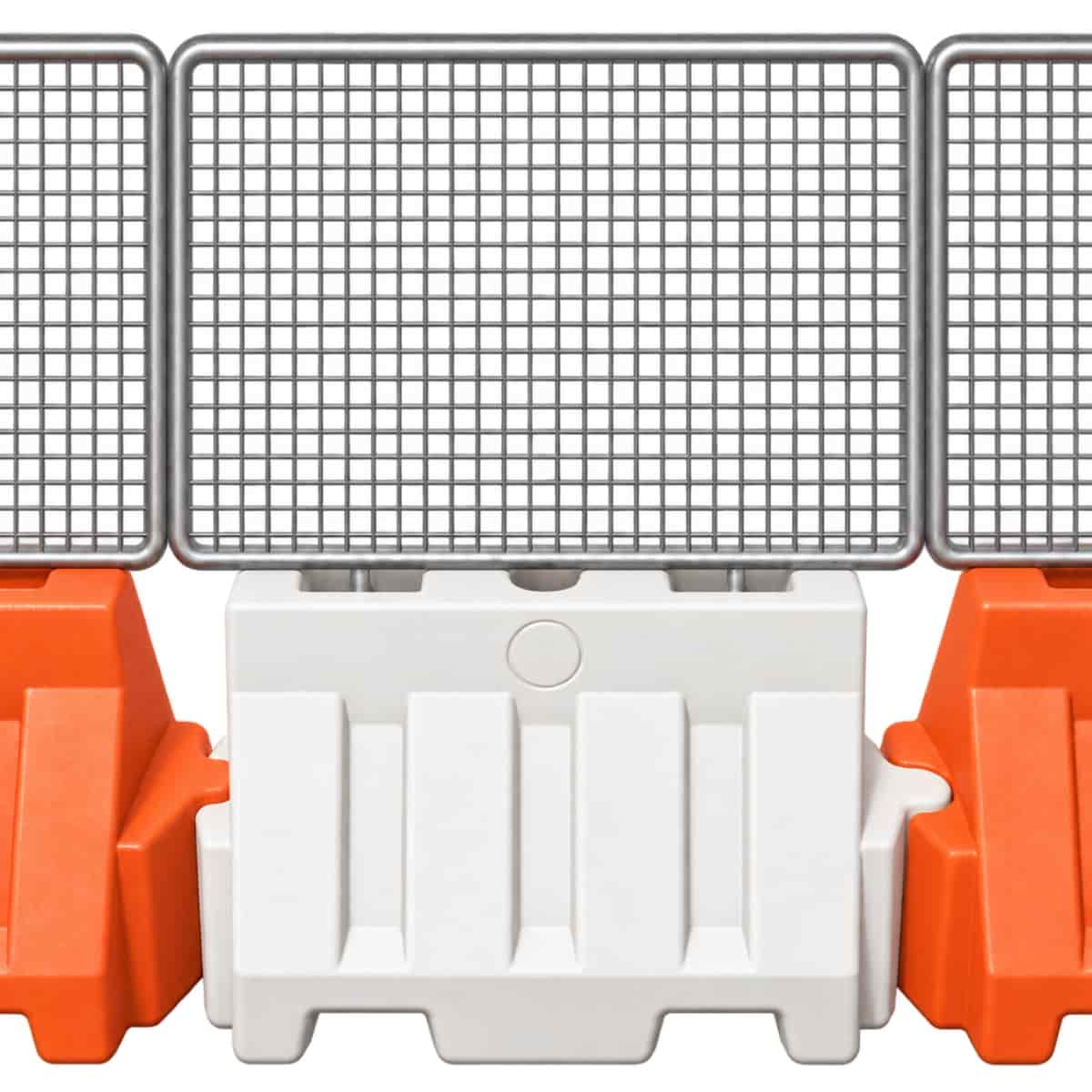

Fencing-ready by design
Top provisions allow compatible fencing components to be considered as part of the site setup.
Pedestrian and work-zone separation
A taller visual boundary can help identify work areas and guide movement around a site.
Flexible to suit your site
Fence panels are sourced separately. Confirm component compatibility and site suitability before installation.
Technical Specifications
AS 1742.3:2019
UV20 Stabilised
Rotationally Moulded LLDPE
Technical FAQs
Quick answers to common technical questions about Barrier Systems products, installation, specifications, testing and technical documentation.
The TM-600 is a general-purpose water-filled delineator suited to temporary site separation, pedestrian guidance and light-duty traffic delineation. Verified applications include construction sites, shopping-centre and car-park environments, sporting and event layouts, and smaller temporary jobs where a practical connected boundary is required.
It is intended for delineation and separation rather than tested vehicle containment.
The TM-600 is the stronger choice where the connected run needs to follow curves, corners or changing directions.
The TM-700 is better suited to predominantly straight, continuous runs and provides more effective length per unit. The choice therefore depends mainly on the geometry of the required layout rather than simply selecting the larger model.
The TM-600 uses an interlocking connection that allows adjoining units to form a connected run while changing direction.
Its shorter 1,050mm effective length also makes it better suited to layouts where the boundary needs to turn or adapt more frequently than a long straight run.
Yes. The TM-600 has built-in provision for compatible fencing where a more defined pedestrian or work-area boundary is required.
Barrier Systems does not currently supply fence top panels for the TM-600; the confirmed fence-panel supply is for KI-1000 and Aqua Stop only. Any compatible fencing configuration should be confirmed for the intended site layout.
Each TM-600 weighs approximately 10kg empty, allowing units to be positioned and connected before filling.
Each unit holds 150 litres of water and weighs approximately 160kg when full. This allows the delineator to remain easy to handle before deployment while gaining substantially more mass once positioned and filled.
Each TM-600 provides approximately 1,050mm of effective connected length.
Its shorter effective length is useful where a layout needs more frequent changes in direction. For long predominantly straight runs, the TM-700 provides greater effective length per individual unit.
Yes. Pedestrian guidance and general work-area separation are part of the TM Series’ intended role.
The TM-600 is particularly useful where the pedestrian or worksite boundary needs to follow a curved, irregular or changing route rather than remain in a long straight line.
No. The TM-600 is a general-purpose delineator for visual separation, pedestrian guidance and light-duty traffic delineation. It is not a tested redirective vehicle-containment system.
Where the requirement is to contain and redirect an errant vehicle, a system designed and tested for that function, such as SHIELD I, should be considered.
The TM-700 should be considered where the requirement is primarily a long, straight continuous run. TM-200 is better suited to low-profile, portable layout control such as parking and line-marking applications. Aqua Stop is the heavier high-mass delineation option, while SHIELD I is intended where tested redirective vehicle containment is required.
KI products may also be more appropriate where pedestrian separation and highly flexible connected geometry are the primary requirement.
Its main practical distinction is the combination of light empty handling, water-filled deployment and a shorter connected format that is better suited to flexible or curved layouts.
That gives the TM-600 a different role from the TM-700’s longer straight-run format and the TM-200’s low-profile layout-control role.
TM-600 Technical Resources
Manuals, product information and technical references for TM-600.
TM-600 Product Overview
Summary of TM-600 dimensions, water fill, mass, connection method and accessory provisions.
TM-600 Product & Installation Manual
Product, handling, connection and installation information for the TM-600 system.
TM-600 Specifications & Data Sheet
Technical reference covering TM-600 dimensions, water fill, mass, connection method and layout configuration.
TM-600 Logistics & Packing Guide
Packing, transport and logistics planning information for TM-600.
