KI-900 Water-Filled Delineator Copy
$425.00
The KI-900 is a compact water-fillable delineator designed for pedestrian separation, temporary routes and low-speed site layouts where easy handling and flexible positioning are important.
Compact Separation for Changing Layouts

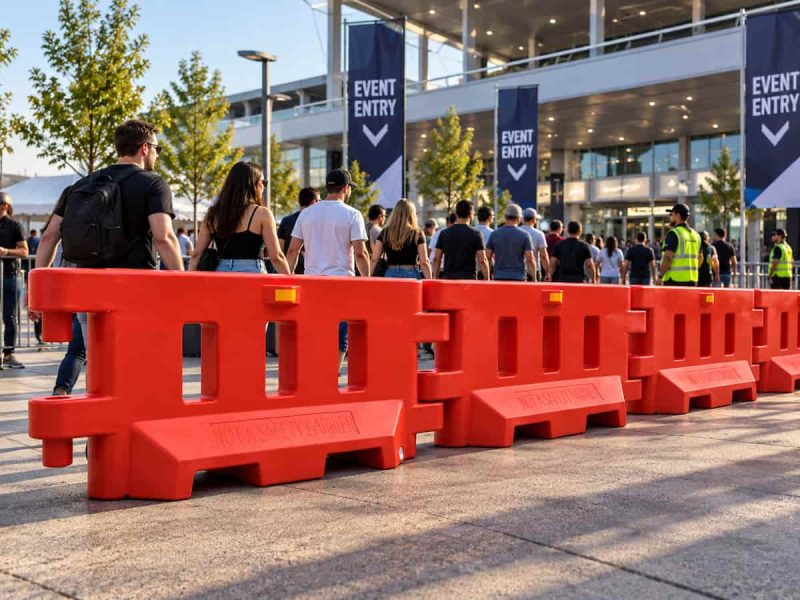

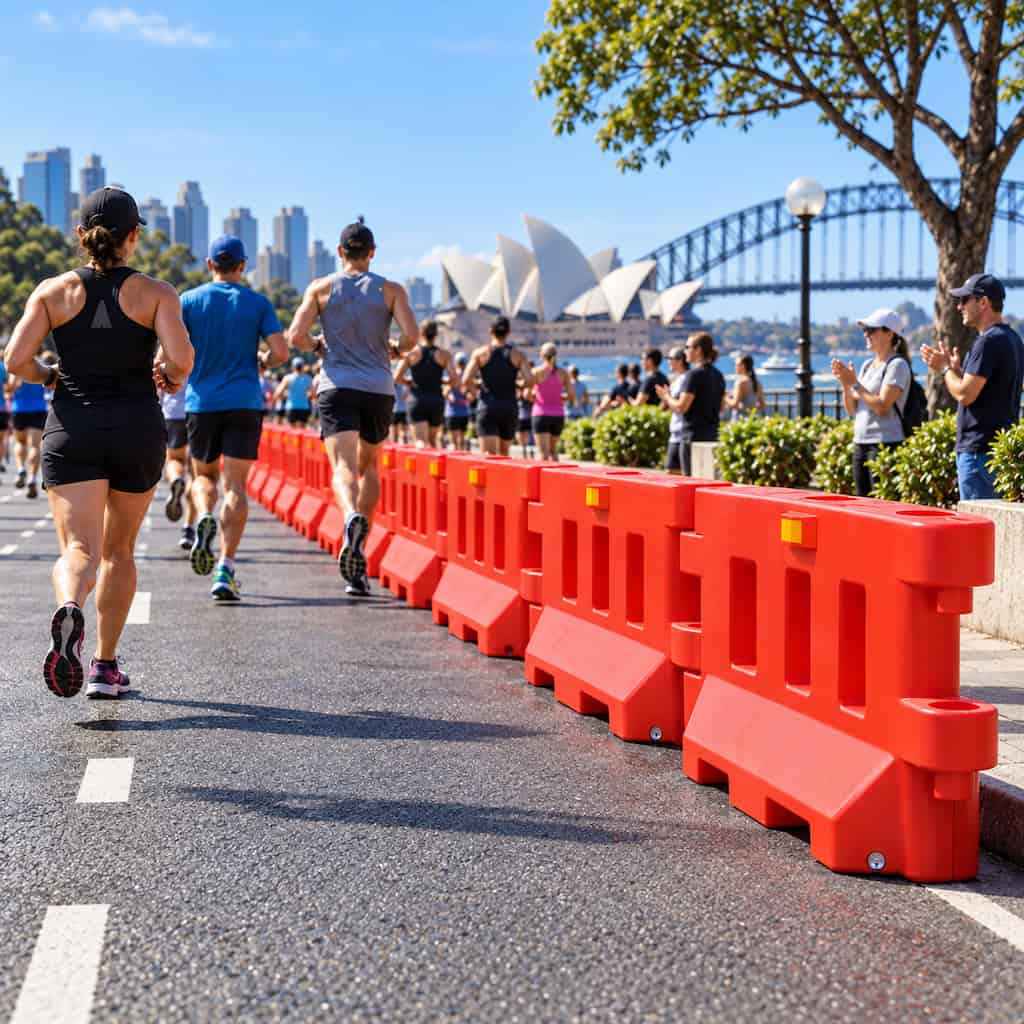

Well suited to temporary walkways, pedestrian routes, event and worksite boundaries, car parks and other low-speed environments where layouts may need to be installed, moved or adjusted quickly.
Easy Handling & Flexible Layout
Its compact format makes KI-900 easier to handle and reposition than larger water-filled systems, while the connected layout can follow changing routes and site conditions.
Built for flexible pedestrian separation

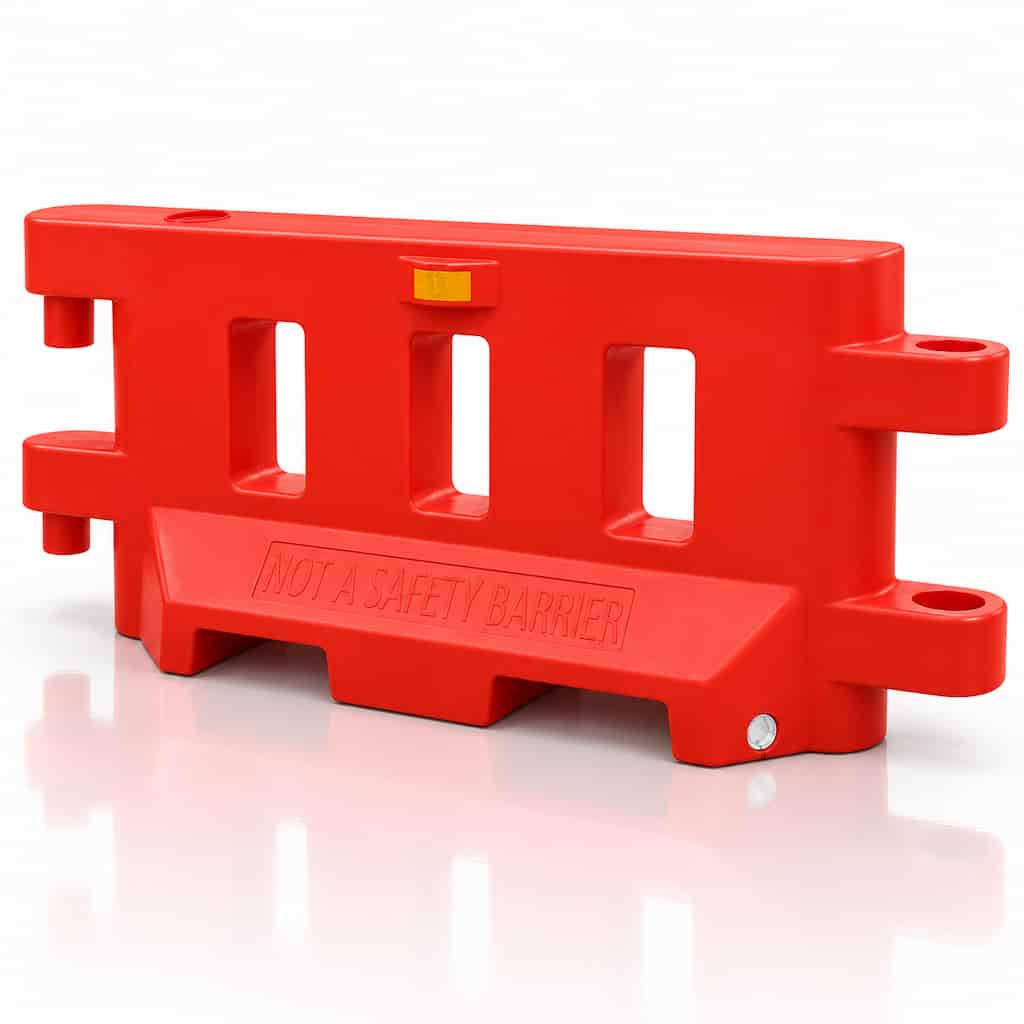

KI-900 is a compact water-fillable delineator for pedestrian routes, temporary walkways and low-speed site separation. Its interlocking format makes it easy to create connected runs that can follow changing layouts, corners and temporary access routes.
Water-Fillable Stability
Flexible Interlocking Layout
Compact & Easy Handling
Compact separation for changing layouts
Designed for pedestrian routes and low-speed environments where connected runs need to be installed, moved or adjusted as site conditions change.
Australian-Made
Designed and manufactured in Australia by Barrier Systems for use across roadworks, civil construction, infrastructure, utilities, mining and industrial sites. Our first-hand product knowledge supports practical guidance on its configuration, intended use and suitability for different worksite requirements.
Configure KI-900 for your site
Plan the connected run and water-fill setup around pedestrian routes, temporary boundaries and changing low-speed layouts.
KI-900 combines a compact format with water-fillable stability, making units easier to handle and reposition before filling.
Compact handling & stability
Adjacent KI-900 units interlock to create connected runs that can follow corners, temporary routes and changing site layouts.
Built-in interlocking connection
Plan the KI-900 quantity required for temporary walkways, pedestrian boundaries and other low-speed delineation layouts.
Plan your KI-900 run
Planning estimate based on effective connected length.

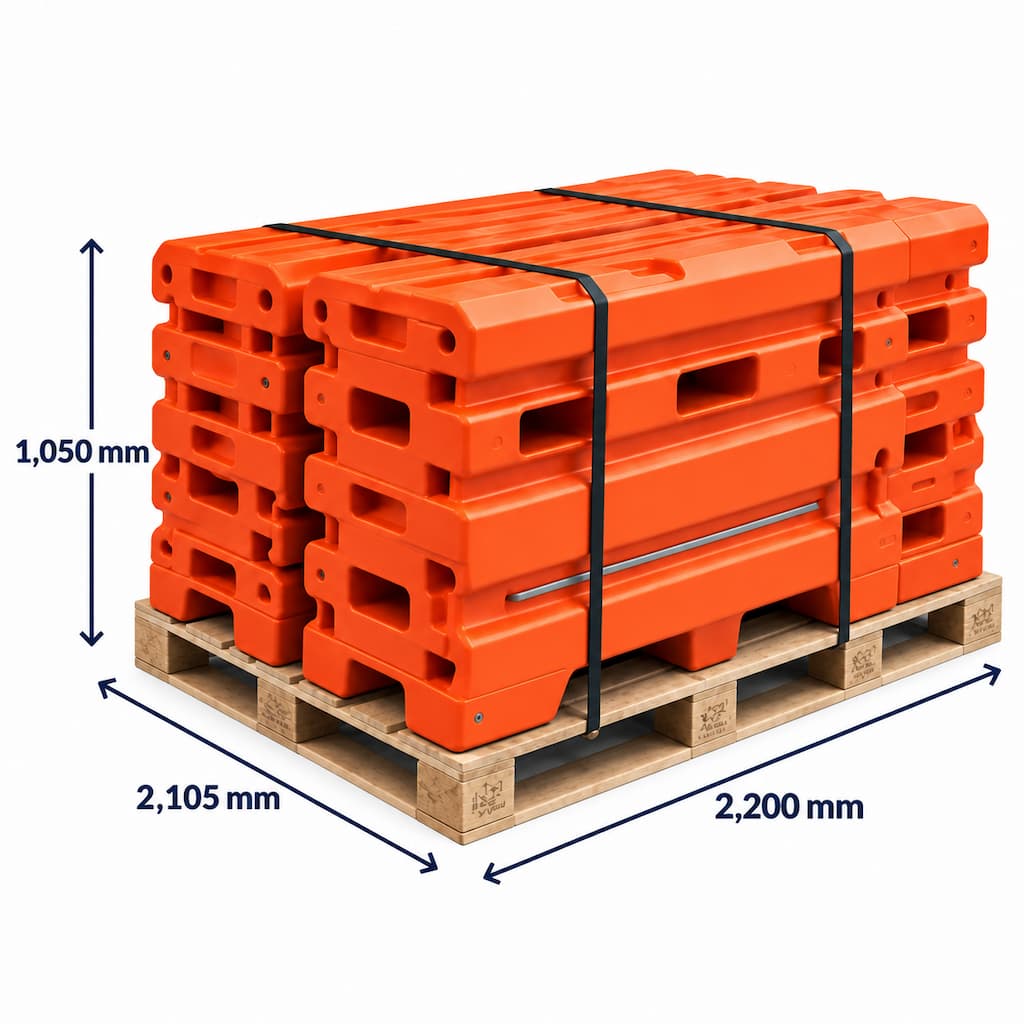

Packaging & Logistics
Transport pack
Transport planning (typical capacities)
B-double and semi-trailer capacities to be confirmed for this product.
Have a Quick Question?
Need a quick answer about a product, availability or which option may suit your needs? Send us a message and our team will get back to you.
Technical Specifications
AS 1742.3:2019
UV20 Stabilised
Rotationally Moulded LLDPE
Technical FAQs
Quick answers to common technical questions about Barrier Systems products, installation, specifications, testing and technical documentation.
The KI-900 is suited to temporary pedestrian routes, walkways, footpaths and detours, car parks and other low-speed areas, and roadwork, construction and civil sites where pedestrian movement needs to be guided or separated.
It is a pedestrian and low-speed delineation product, not a tested vehicle-containment barrier.
The KI-900 is the lighter and more compact option in the KI Series. It weighs 25 kg empty, holds 270 L of water and weighs 297 kg when filled, making it a natural fit for temporary and flexible pedestrian layouts where units may need to be positioned and adjusted before filling.
The KI-1000 is the larger and heavier KI model and adds mesh-fencing, hazard-light and pole-signage provisions for more structured pedestrian-management layouts.
No. The supplied KI-900 product information states that the KI-900 does not provide for mesh fencing.
Where mesh fencing is required, the KI-1000 is the KI Series option with confirmed mesh-fencing provision.

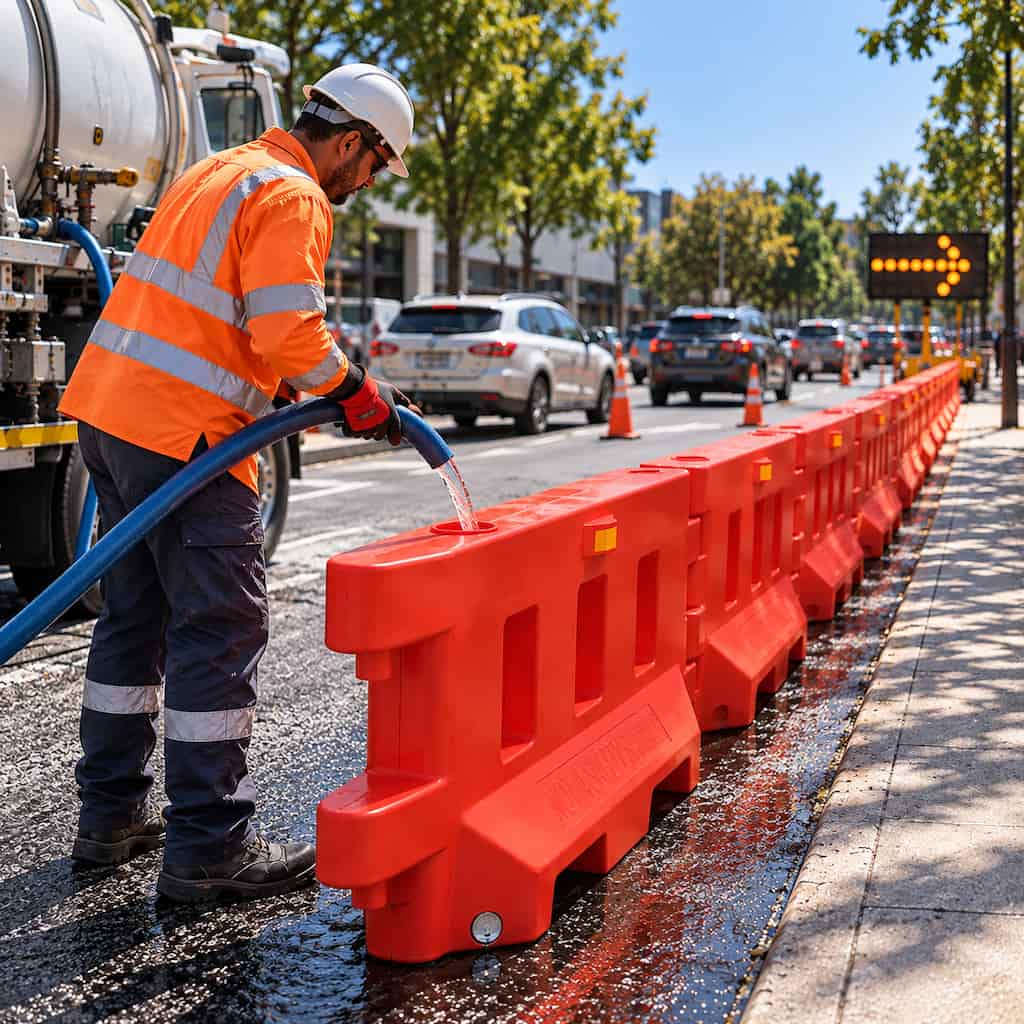

The KI-900 can be positioned and connected while empty, then filled with water on site. Each unit weighs 25 kg empty, has a 270 L water-fill capacity and weighs 297 kg when filled.
Yes. Temporary pedestrian walkways, footpaths and detours are among the KI-900’s main application areas. Its connected interlocking format allows the run to follow changes in direction rather than being restricted to a straight line.

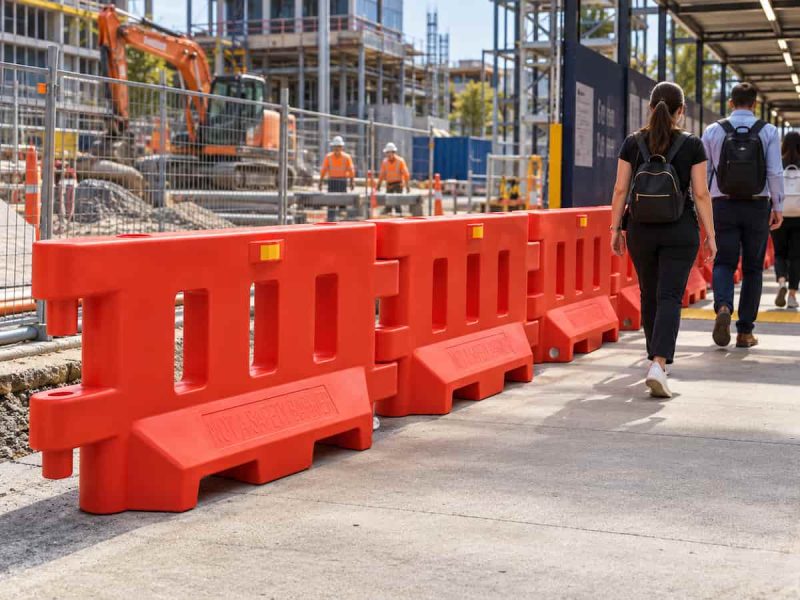

The KI-900 suits roadwork, construction and civil environments where temporary pedestrian guidance or separation is required. It is intended for pedestrian and low-speed delineation rather than vehicle containment or crash protection.
Its interlocking pin-and-hole joining system keeps adjoining units connected while allowing movement through angles of up to 120° each way. This lets a connected run follow corners, curves and changing pedestrian routes.
No. The KI-900 is designed for pedestrian separation, pedestrian guidance and low-speed delineation. It is not a tested vehicle-containment or crash-protection system.

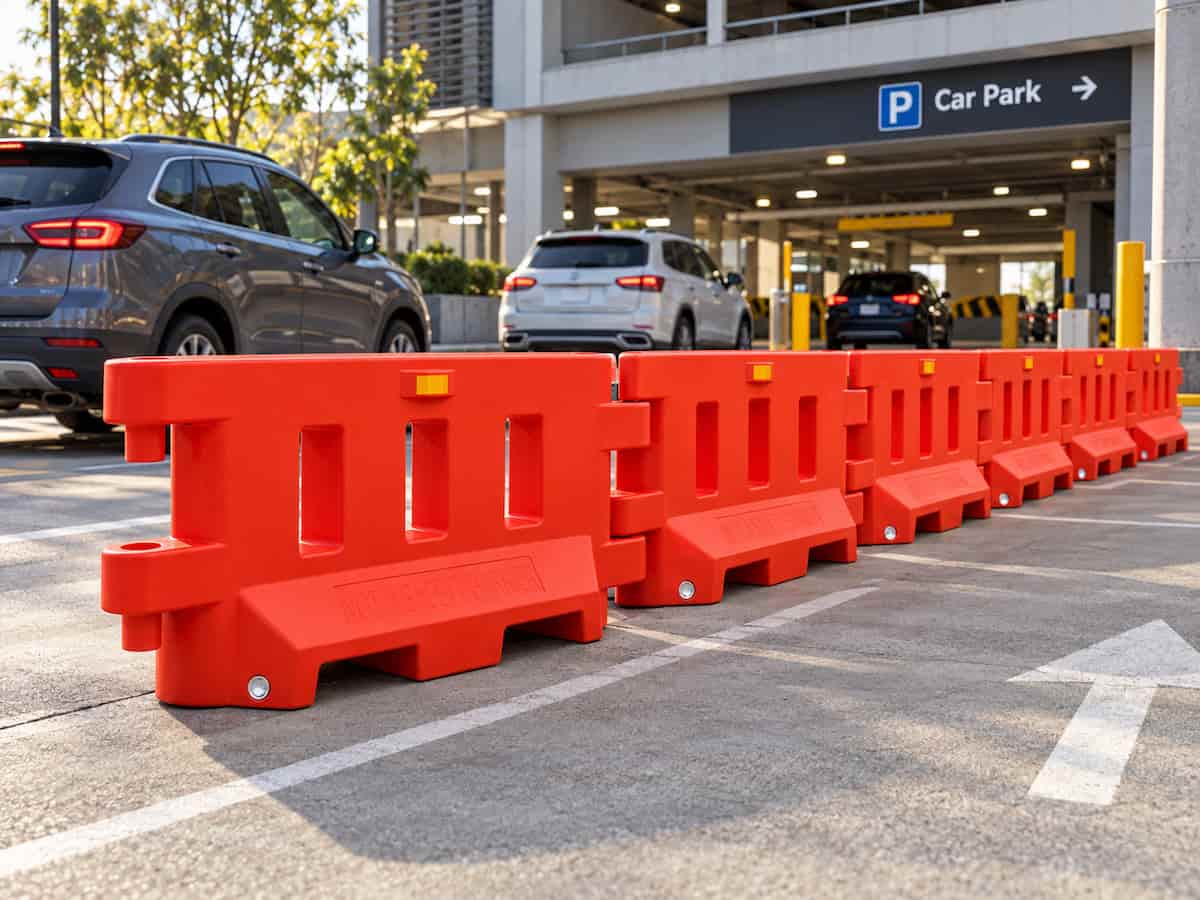

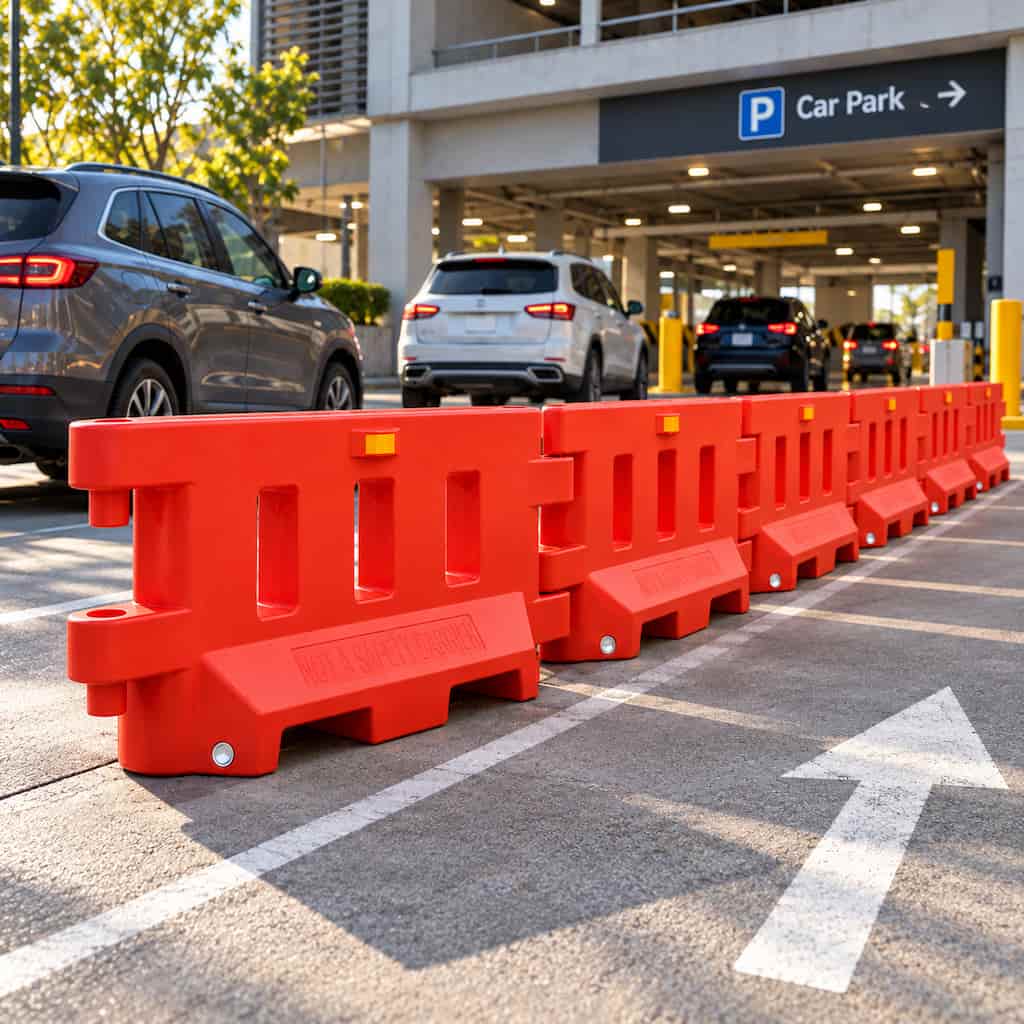

The KI-900 can be used for pedestrian separation and connected route guidance in car parks, parking areas and other low-speed environments. Its compact format and flexible interlocking connection are useful where layouts need to follow corners or change direction.
Consider the KI-1000 where a larger KI format or confirmed mesh-fencing, hazard-light and pole-signage provisions are required. Aqua Stop is the heavier high-mass delineator for longer or more exposed applications, while SHIELD I is the product for tested redirective vehicle containment. TM products cover more general-purpose temporary delineation and low-profile layout control.
KI-900 Technical Resources
Manuals, product information and technical references for KI-900.
KI-900 Product Overview
Summary of KI-900 dimensions, water fill, mass, interlocking layout and pedestrian-separation role.
KI-900 Product & Installation Manual
Product, handling, interlocking connection and installation information for the KI-900 system.
KI-900 Specifications & Data Sheet
Technical reference covering KI-900 dimensions, water fill, mass, interlocking movement and system configuration.
KI-900 Logistics & Packing Guide
Packing, transport and logistics planning information for KI-900.
