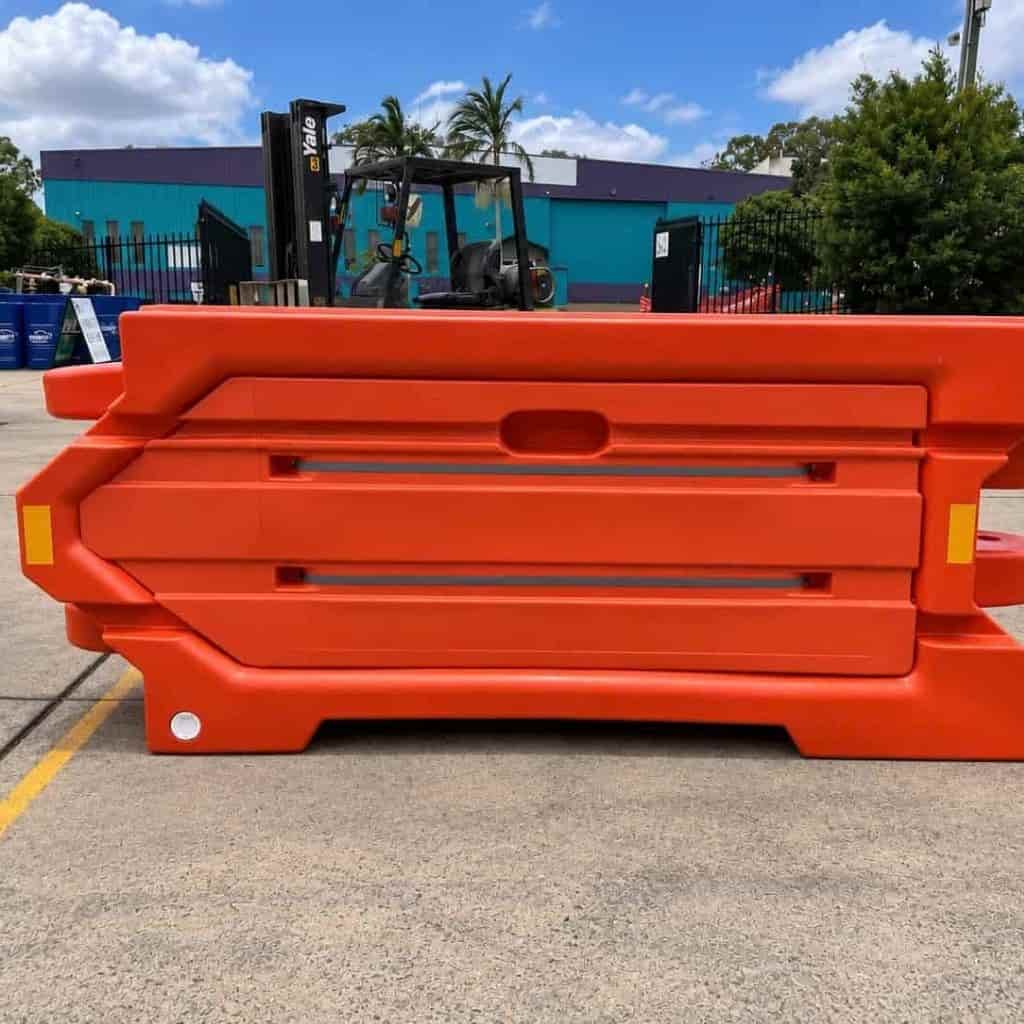

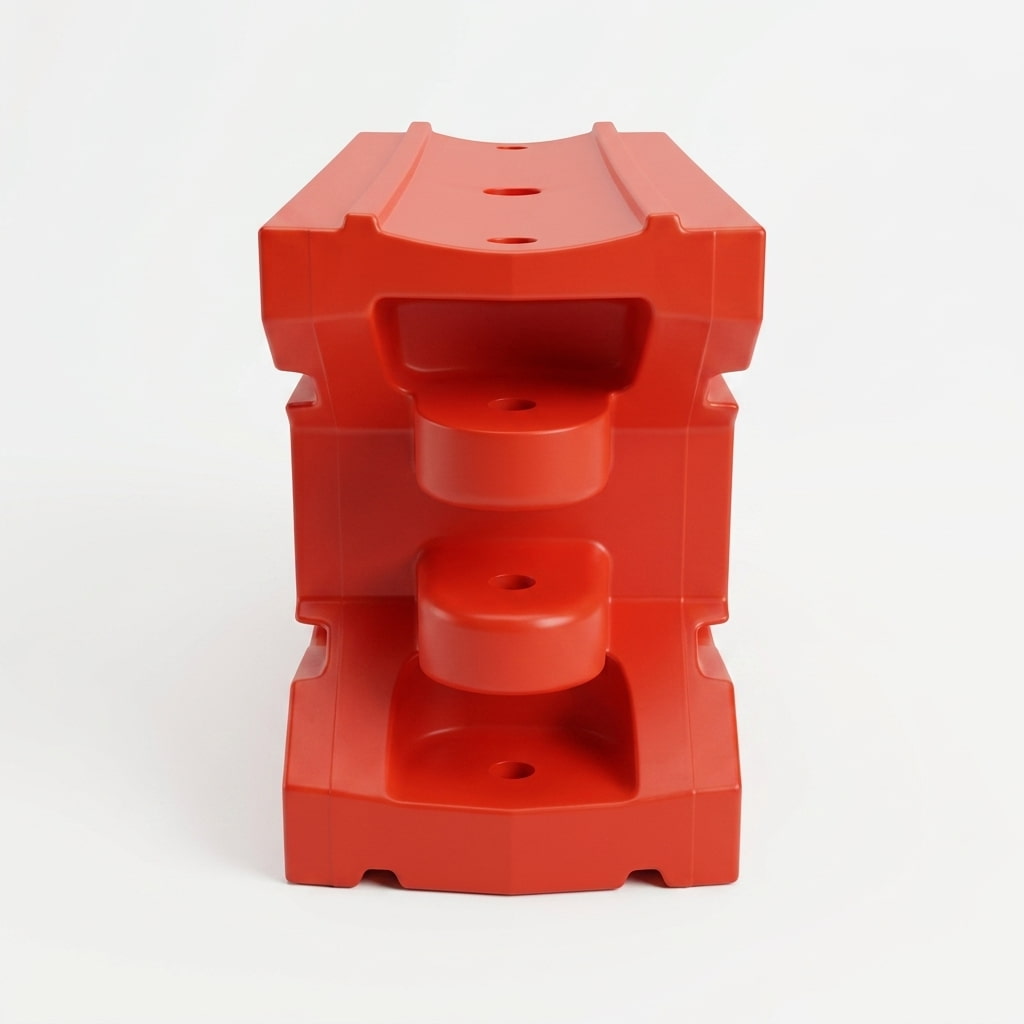

SHIELD I™ Redirective Barrier Orange - Image 1
SHIELD I™ Redirective Barrier Orange - Image 2
SHIELD I™ Redirective Barrier Orange - Image 3
SHIELD I™ Redirective Barrier Orange - Image 4
Click to enlarge

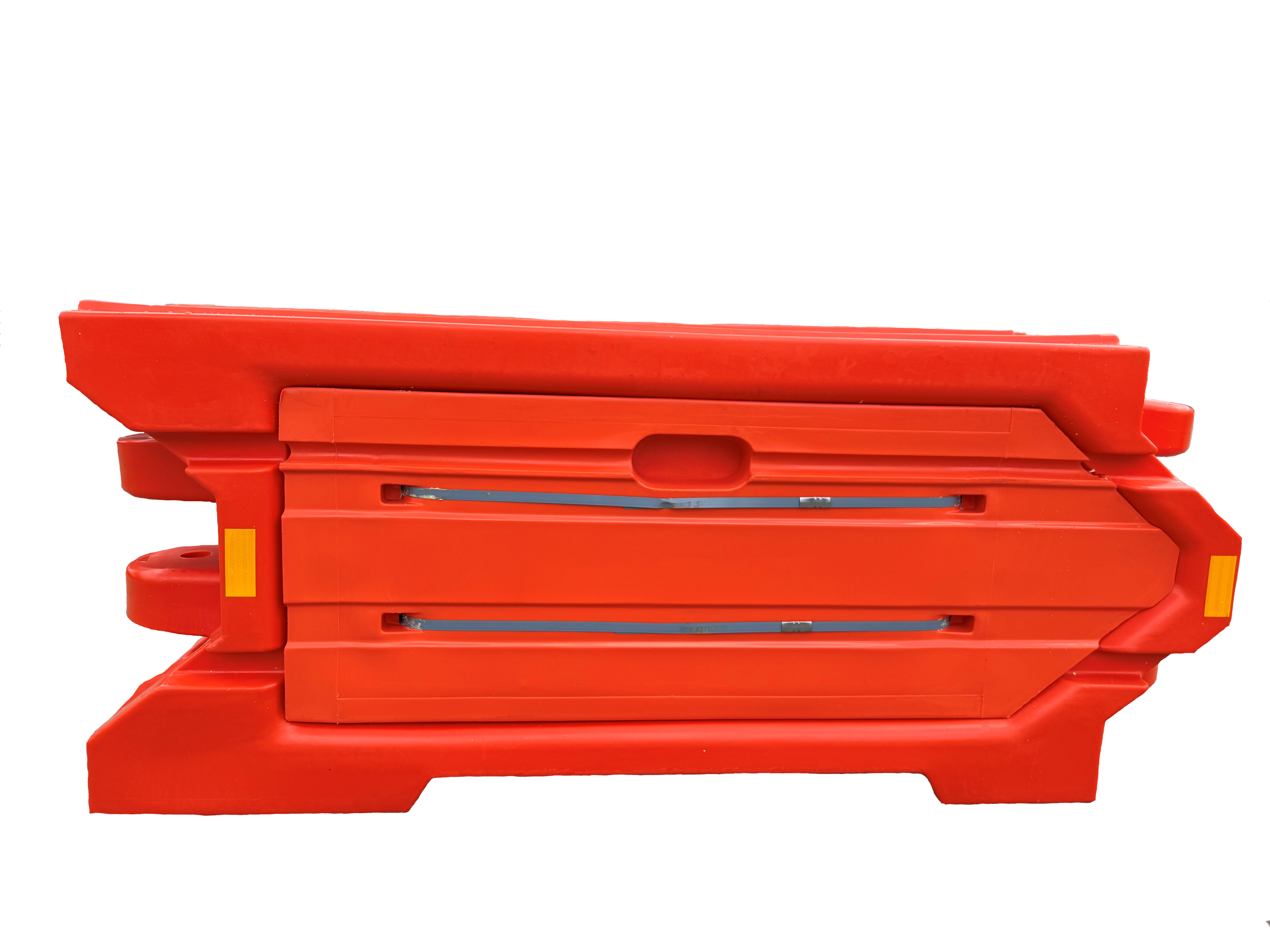

SHIELD I™ Redirective Barrier Orange
SHIELD I™ Redirective Barrier Orange - Image 2
SHIELD I™ Redirective Barrier Orange - Image 3
SHIELD I™ Redirective Barrier Orange - Image 4
KI-900 Delineator
KI-900 Delineator $425.00
Back to products
SHIELD I™ Redirective Barrier Yellow End
SHIELD I™ Redirective Barrier Yellow End

SHIELD I™ Redirective Barrier Orange

SHIELD I™ is an Australian-made, water-fillable longitudinal barrier unit used as part of a temporary redirective traffic-barrier system. The Safety Orange unit holds 530L, provides 2000mm of effective installed length and connects to adjoining units using a galvanised steel pin. Intended for temporary roadworks, lane closures and civil or utility work zones where vehicle containment is required.

Containment Beyond Visual Delineation.

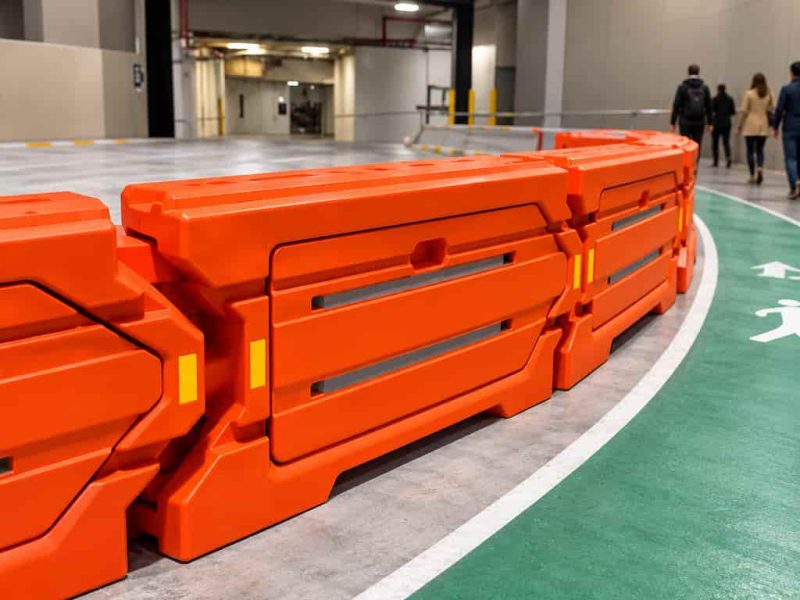

SHIELD I is designed for temporary traffic separation where vehicle containment and redirection are required, rather than visual guidance alone.

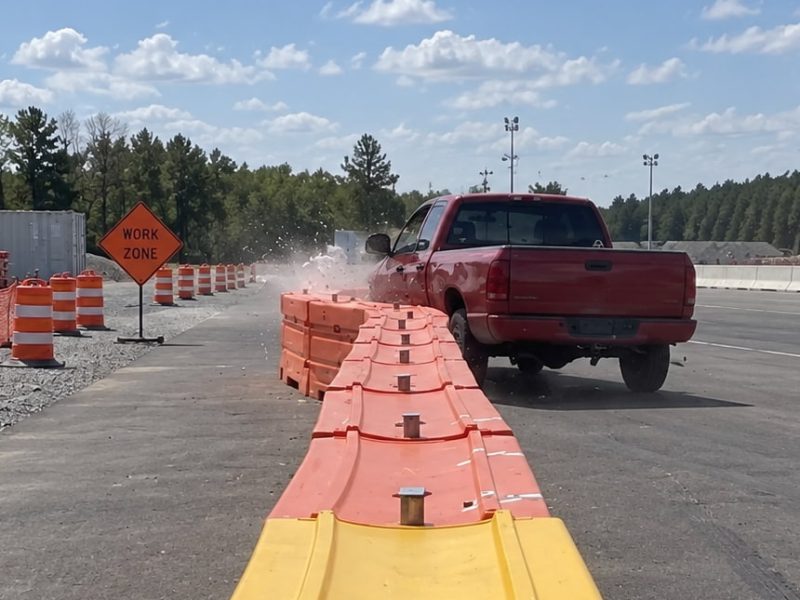

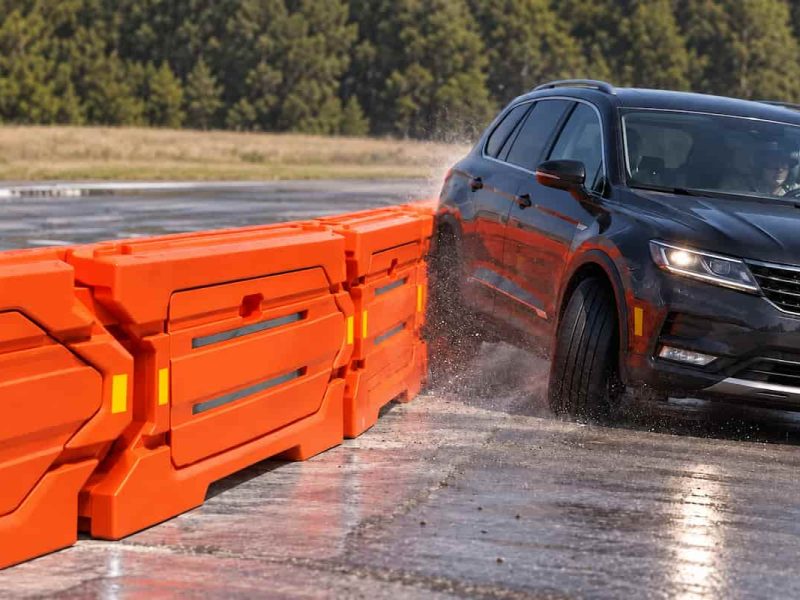

MASH TL1 Tested Redirective Containment.
In its documented configuration, the SHIELD I system provides MASH TL1 tested containment and redirection, with an accepted impact speed of 50 km/h.

Description

Fill capacity

530L

Effective length

2,000mm

Height

920mm

Empty weight

81kg

Overall length

2,200mm

Width

600mm

Filled weight

611kg

Joining system

Pin

Impact speed rating

TL-1 50km/h

Empty weight

81kg

Effective length

2,000mm

Certifed MASH TL-1 Impact Protection Barrier

The SHIELD I™ Safety Barrier System is documented at MASH Test Level 1, with an accepted impact speed of 50 km/h. Installed in its specified configuration, it provides redirective containment for suitable temporary traffic applications.

Documented performance includes 2.20m dynamic deflection, 2.80m working width and a minimum installation length of 44m between terminals. Length of need and clearance remain site-specific.

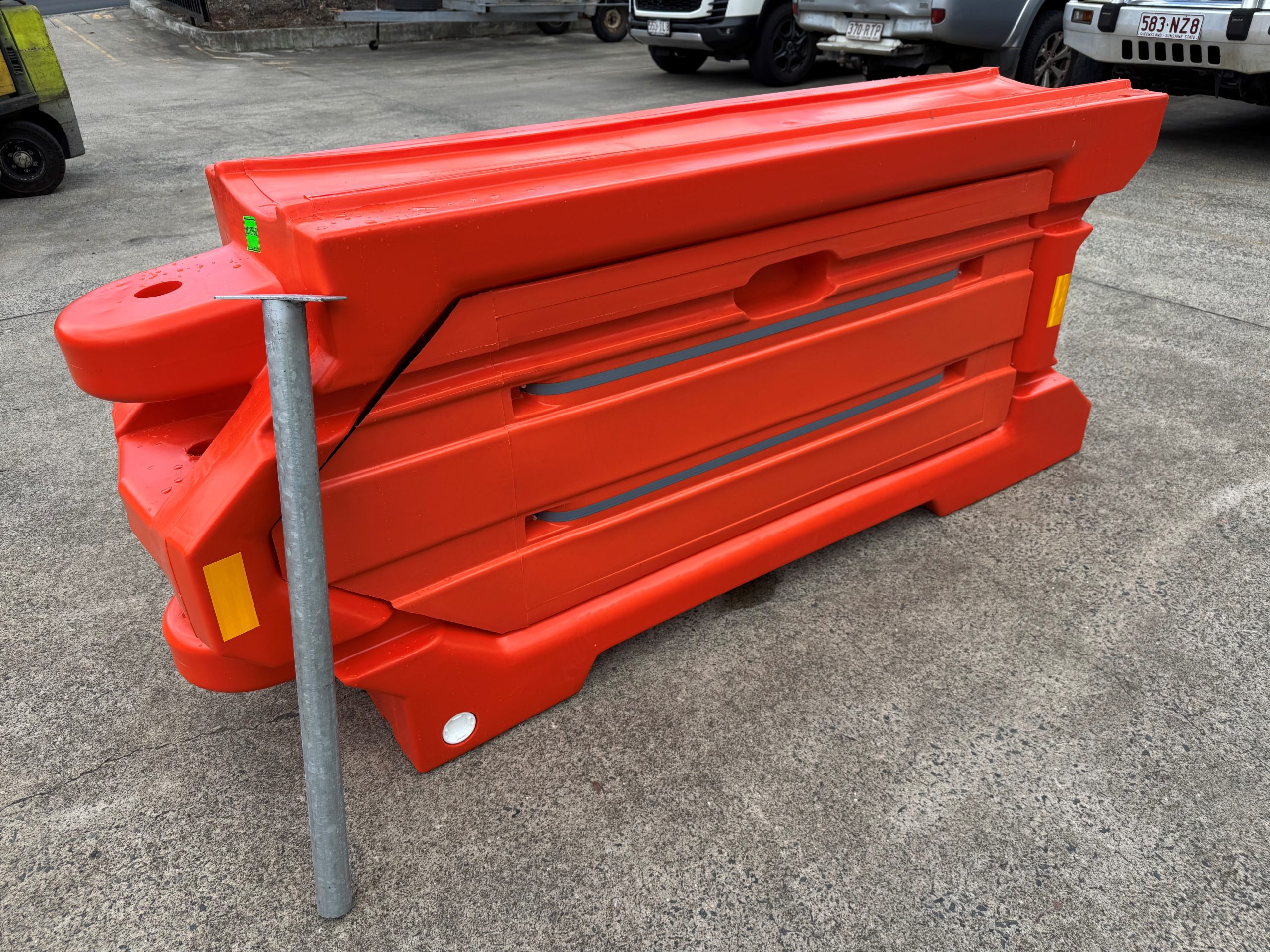

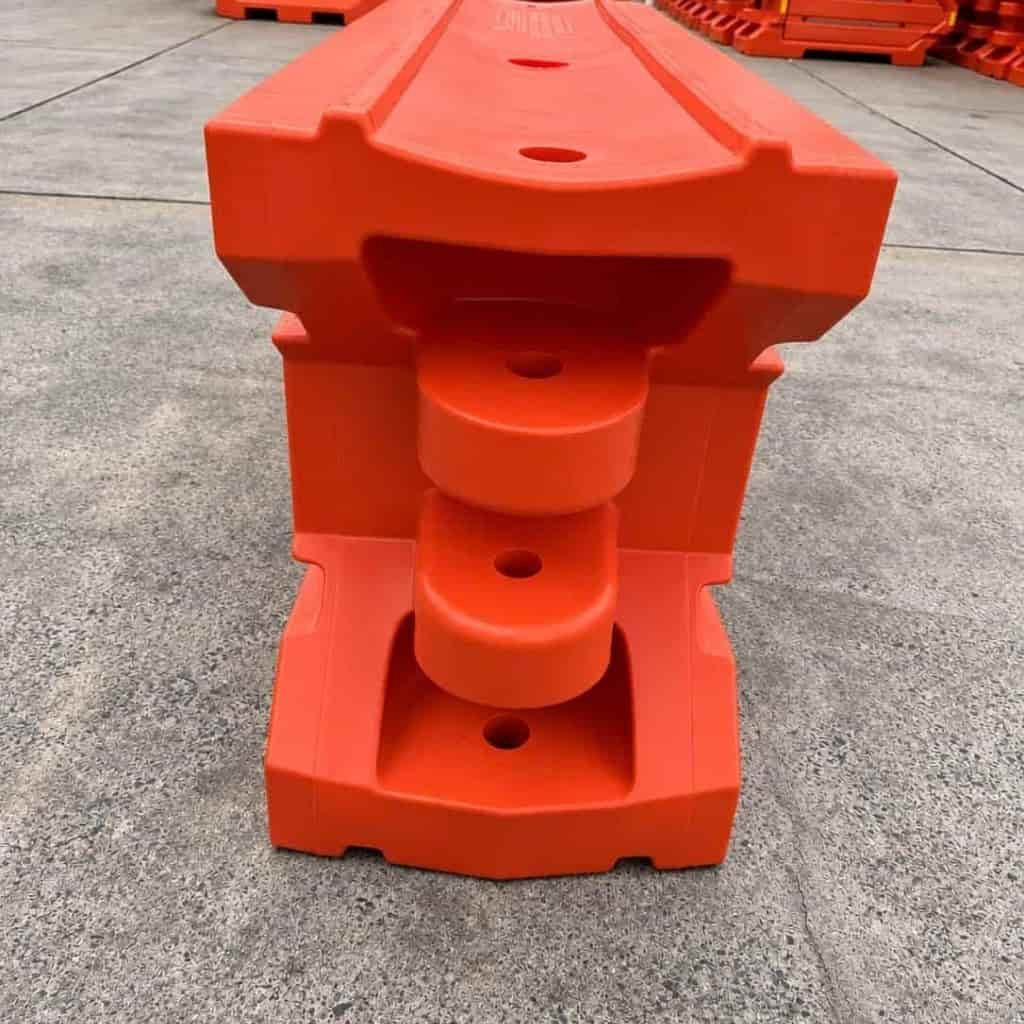

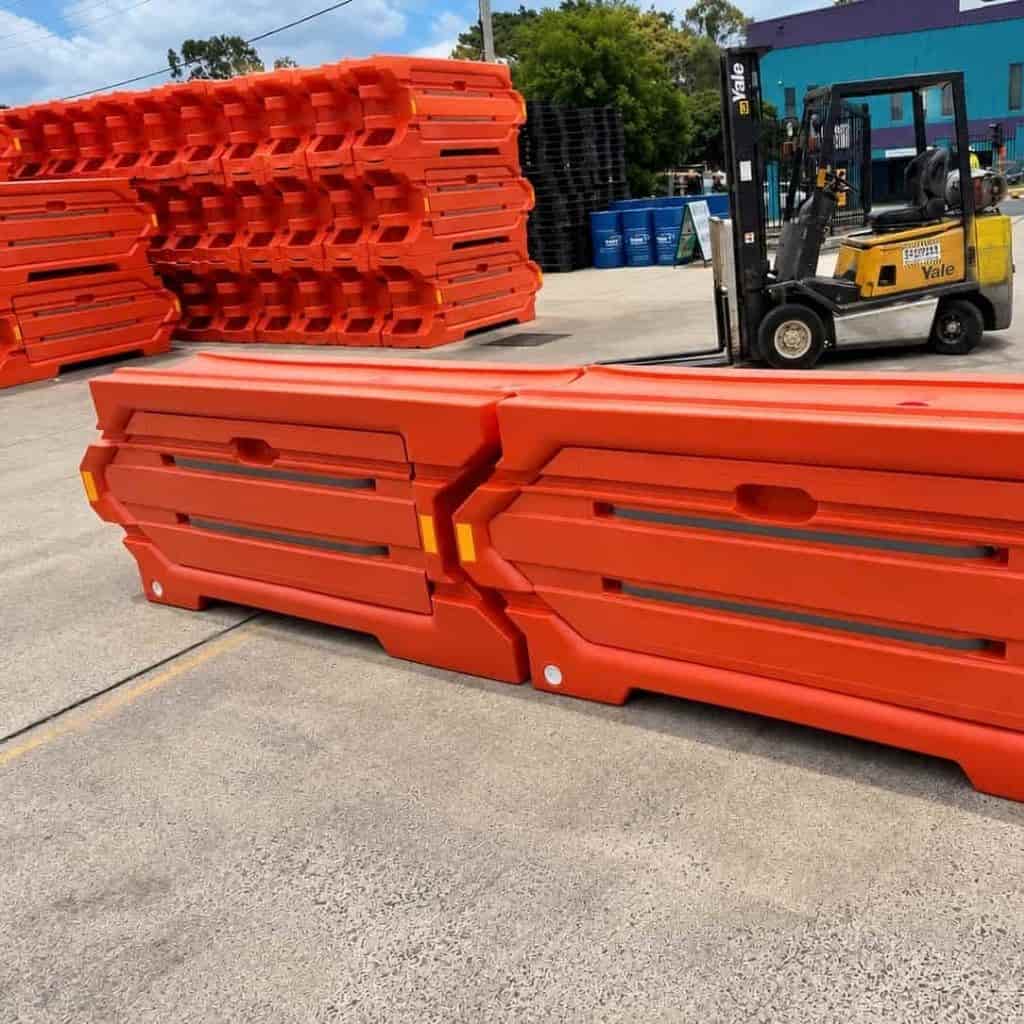

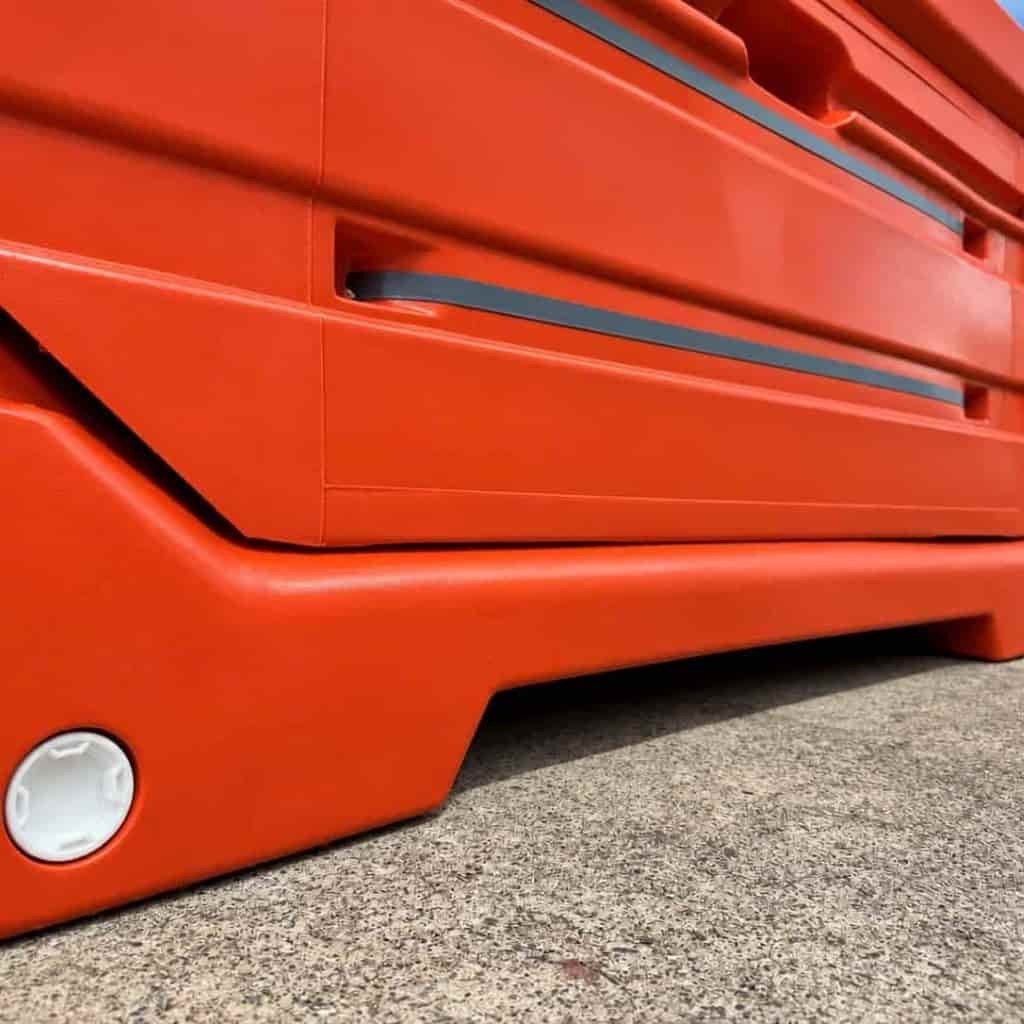

Straightforward Interlocking Pins

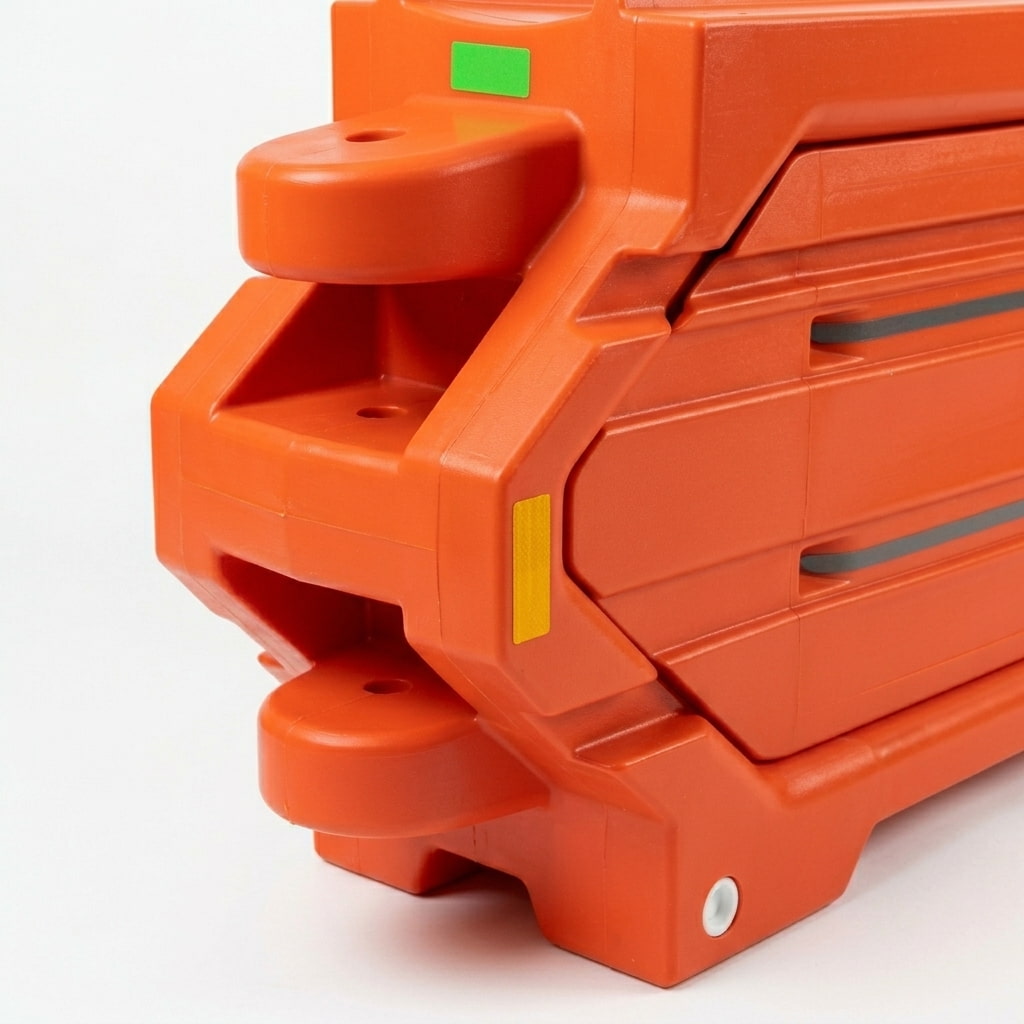

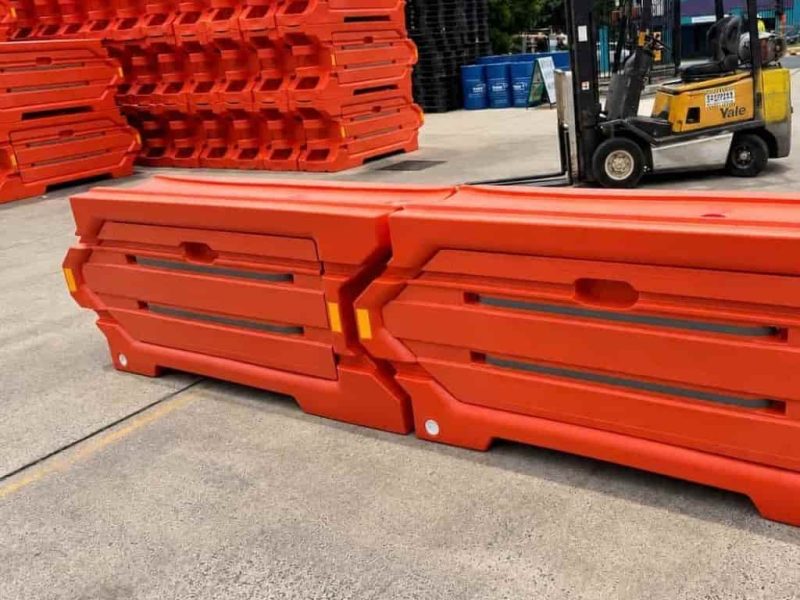

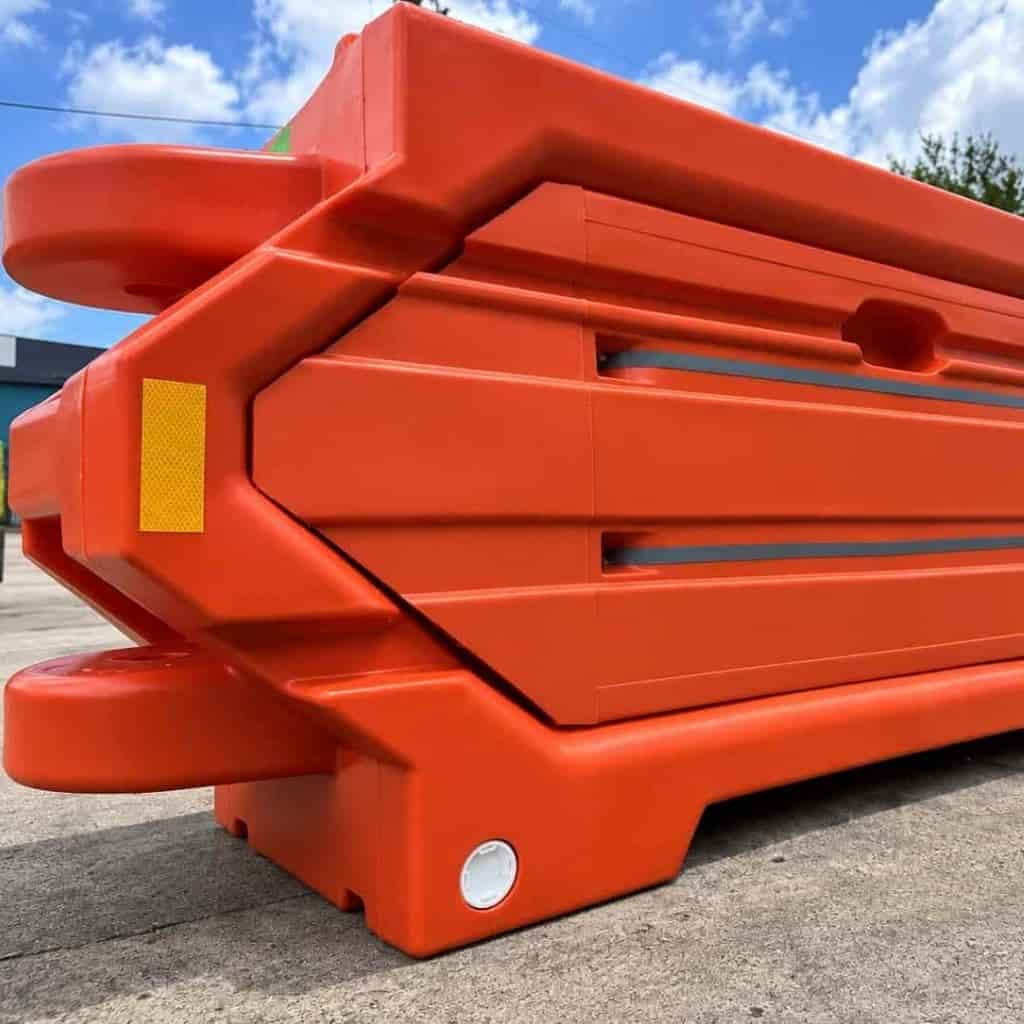

Each unit links to the next with an interlocking connection, forming a strong, secure connection between adjoining units.

Austroads Technical Conditions for Use

Austroads records SHIELD I™ for acceptance at MASH TL1, with an accepted impact speed of 50 km/h.

Plan a Complete SHIELD Barrier Run

Site-Specific Support Backed by Reliable Project Supply

A complete SHIELD I run must suit the application, road-agency requirements and available site clearance. We can help identify the required components and quantities, provide current documentation, and coordinate supply timing and freight around your project.

Send us your site details, proposed run, required date and delivery location.

Discuss Your Requirements

MASH TL-1 Compliance & Safety

Tested to withstand a 2,270kg vehicle at 50km/h, the SHIELD I provides certified redirective performance with a 2.2-metre dynamic deflection, ensuring full approval across classified road networks.

Tested Containment for Roadworks

SHIELD I is designed for temporary separation alongside live traffic where tested redirective containment is specified, including roadworks, lane closures and civil or utility projects.

Plan for the Full Working Width

SHIELD I requires the full 2.80m working width beside work areas and roadside hazards to perform as tested. Layouts should not be based on the 2.20m dynamic deflection alone.

Find SHIELD I™ specifications, installation guidance and road-authority listings in our PDF downloads.

Learn More

Australian-Made SHIELD I Barrier Units

Barrier Systems is the Australian manufacturer, product expert and reliable supplier for SHIELD I, backed by QSolutions’ rotational-moulding capability. Safety Orange is the standard colour for longitudinal units; project-specific colours may be available on request, subject to manufacturing review and confirmation against the intended traffic-management plan, jurisdiction and road-agency requirements.

Our first-hand product knowledge supports clear component information, current technical documentation and practical supply planning for roadworks, civil, infrastructure and utility projects across Australia.

How Is SHIELD I barrier different from a high-mass delineator?

A delineator defines a boundary and provides visual guidance. It is not selected for tested vehicle containment. SHIELD I™ is a temporary redirective barrier system intended to contain and redirect an errant vehicle when installed in its documented MASH TL1 configuration.

Although both categories may use plastic water-fillable units, their safety functions are different. Where a project requires high-mass visual delineation for longer or more exposed runs rather than tested containment, the Aqua Stop heavy-duty delineator may be the more appropriate product.

When should a redirective containment barrier be used?

Redirective containment should be specified where the traffic-management or road-safety design requires an errant vehicle to be contained and redirected along a barrier rather than enter a work area or strike a hazard. A site being busy, exposed or associated with roadworks does not establish that requirement on its own.

First establish the required safety function. Then confirm that the documented speed, run length, lateral space, terminals, supporting surface and road-agency conditions can be accommodated.

What working-width and dynamic-deflection does SHIELD I™ require?

Dynamic deflection describes the barriers sideways movement during impact. Working width describes the total lateral space occupied by the system during that movement. SHIELD I has a documented dynamic deflection of 2.20m and working width of 2.80m.

SHIELD I™ needs the full 2.80m working width to operate as documented. Planning around the 2.20m deflection alone understates the lateral space occupied during impact.

How long must a SHIELD I™ run be?

The current Austroads conditions specify a minimum installation length of 44m between terminals, while the tested article length is 52m. Neither figure is automatically the projects length-of-need.

Length of need is the site-specific barrier length required to shield the hazard. It depends on the hazard position, traffic approach, points of redirection and system layout. The required quantity should therefore be based on the assessed installation rather than the minimum length alone.

You can find our Austroads Safety Barrier Technical Conditions for Use PDF here: https://austroads.gov.au/__data/assets/pdf_file/0024/633480/240307-TCU-Shield-I-Safety-Barrier-System-Temporary.pdf

Why are SHIELD I™ terminal ends required?

An accepted end treatment is required at both ends of every SHIELD I™ installation. The separate SHIELD I™ terminal units complete these end treatments and remain unfilled.

The SHIELD I™ terminal is gating and requires a traversable, hazard-free run-out area measuring 18.5m × 6m from the point of redirection. It should not be treated as a crash cushion or as part of the redirective longitudinal section.

Which temporary traffic applications is SHIELD I™ suited for?

SHIELD I™ suits temporary roadworks, lane closures and civil, infrastructure or utility projects where longitudinal separation beside live traffic requires tested redirective containment. It can separate the traffic path from a work area or roadside hazard when the documented system and site conditions can be met.

For road or lane closures, SHIELD I™ is arranged along the traffic path rather than across it as a roadblock. It is not an anti-ram device or crash cushion. A road, highway or roadside label alone does not establish suitability for the application.

What site pavement/surface conditions does SHIELD I™ require?

The current Austroads conditions for SHIELD I™ document the following foundation pavement types:

  • Concrete
  • Deep-lift asphaltic concrete
  • Asphaltic concrete over granular material
  • Flush seal over granular material
  • Unsealed compacted formation

The supporting surface must be smooth and free of snag points, kerbs or obstructions that could interfere with the system’s movement. Minimum support width and the effects of the site geometry require site-specific assessment.

Do Austroads recommendation apply nationwide?

The Austroads record issued 7 March 2024 lists SHIELD I as Recommended for acceptance at MASH TL1, with an accepted impact speed of 50 km/h. This recommendation is not blanket approval for every Australian road network.

Each road agency determines acceptance within its jurisdiction and may apply additional conditions. The relevant agency standards and project requirements should therefore be confirmed before SHIELD I is specified or installed.

MASH TL1 alone does not confirm site suitability.

MASH TL1 establishes the tested containment level, but it does not by itself confirm that a barrier system suits a particular site. SHIELD I™ performance must be applied within its documented system conditions, including the 50 km/h accepted impact speed, working width, dynamic deflection, connected length, terminals and clear zones.

The test level establishes the performance basis. The traffic environment, barrier layout, site conditions and road-agency requirements determine whether the complete system can be specified for the project.

What forms a complete SHIELD I™ redirective barrier system?

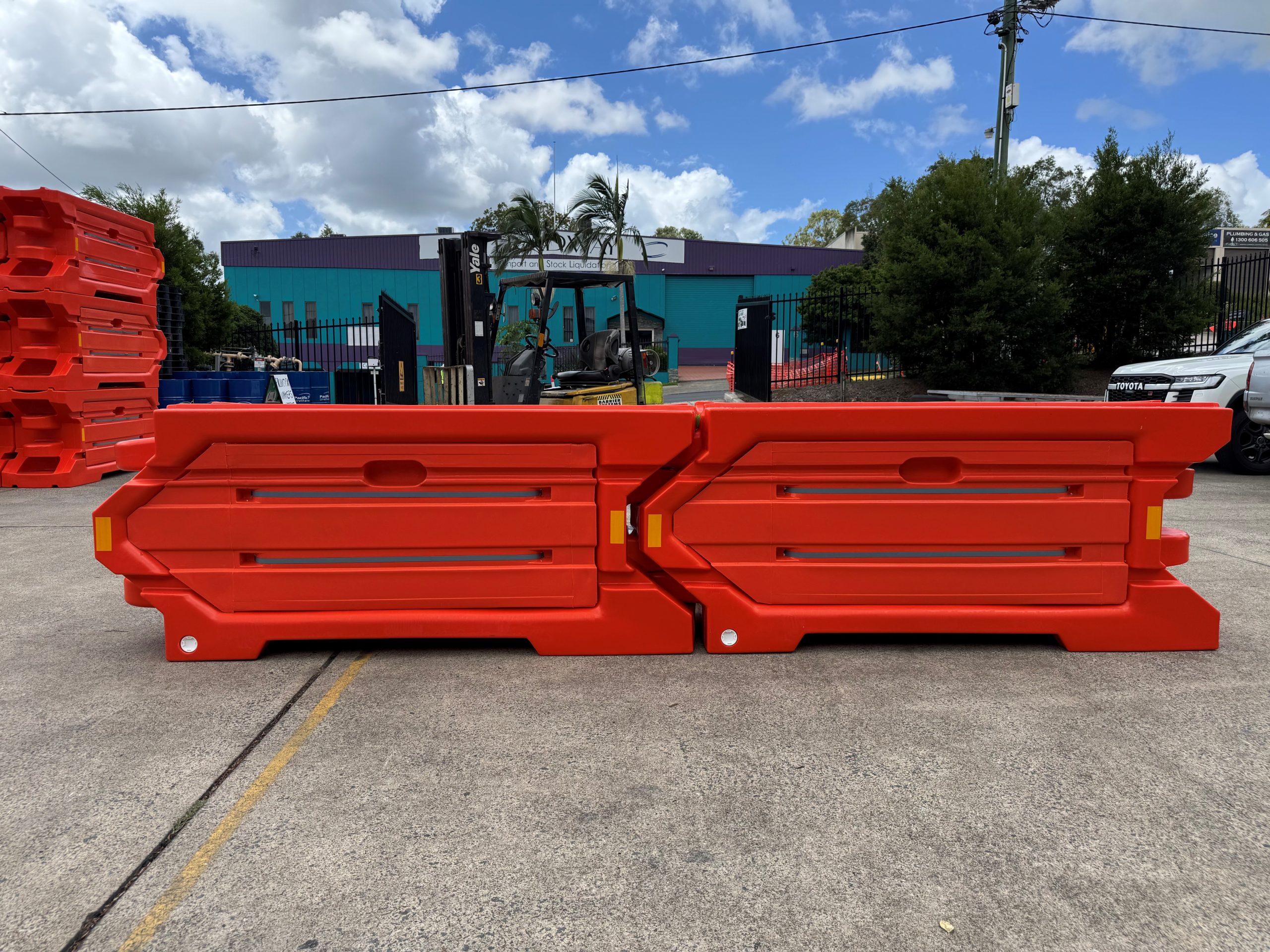

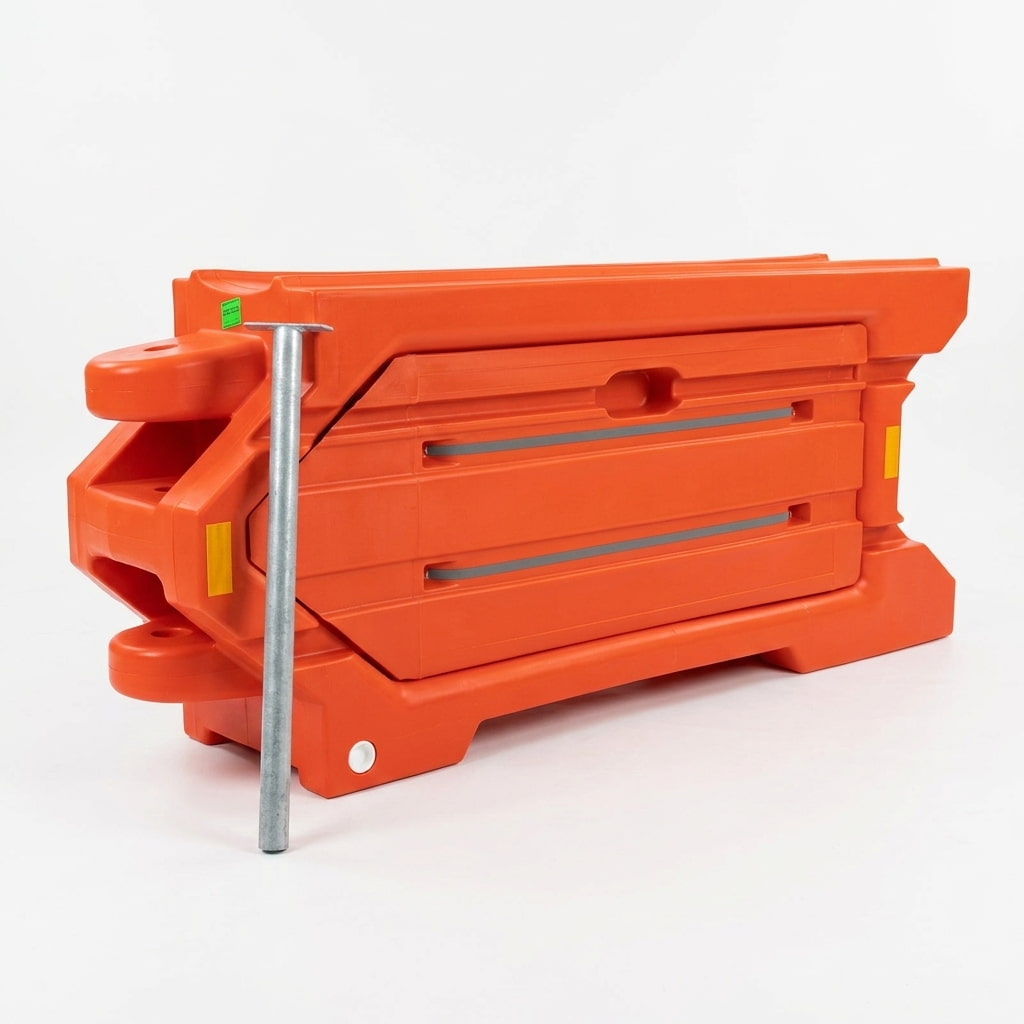

The complete SHIELD I™ system consists of connected longitudinal pieces and SHIELD I™ terminals at both ends. The pieces interlock and are secured with a galvanised steel drop-in joining pin. This provides a substantially stronger mechanical connection for impact loads than the moulded-only interlocks commonly used to hold delineators or dividers in line. During a collision, the steel pin helps keep adjoining pieces engaged while allowing the controlled movement required by the redirective system.

The installation must also meet the technical requirements for connected length, terminal arrangement, working width, clear zones and site conditions. Together, these components and requirements form the documented MASH TL1 redirective barrier system. Using the correct pieces alone does not establish a compliant installation.

Talk to Us About Your Barrier Requirements

Tell us the application, required quantity or total run length, delivery location and required date. We can help confirm suitability and current availability, then plan production timing and freight around your project.





    PDF Resources

    Product & Installation Manual

    Specifications and guidance covering system components, minimum run length, terminals, working width, installation, removal and maintenance.

    Download PDF

    Product Overview

    A two-page summary of SHIELD I™ dimensions, weights, water capacity, steel-pin joining, minimum run length and MASH TL1 test details.

    Download PDF

    Queensland TMR Register

    Queensland TMR lists SHIELD I as a temporary plastic water-filled device at MASH TL1. See document page 28.

    Download PDF

    Transport for NSW Register

    Transport for NSW lists SHIELD I among accepted temporary plastic water-filled safety barriers at MASH TL1. See page 26.

    Download PDF

    Victoria DTP Register

    Victoria DTP lists SHIELD I under temporary plastic water-filled longitudinal barriers at MASH TL1. See page 32.

    Download PDF

    Main Roads WA Register

    Main Roads WA lists SHIELD I as a MASH TL1 water-filled work-zone barrier system. See page 7.

    Download PDF
